1072: chartjs integration

[rhaicode]

Thank you for your contribution to the KodaDot NFT gallery.

👇 Let's do a quick check before the merge.

PR type

• Bugfix
• Feature
• Refactoring

Before submitting Pull Request, please make sure:

• My contribution builds clean without any errors or warnings
• I've merged recent default branch -- main and I've no conflicts
• I've tried respect high code quality standards
• I've didn't break any original functionality
• I've posted screenshot of demonstrated change in this PR

Optional

• I've tested PR on mobile and everything works
• I found edge cases

What's new?

• PR closes New charts engine #1072
• Replaced charts using ECharts to ChartJS instead

Had issue bounty label?

• Fill up your KSM address: Payout

Community participation

• Are you at KodaDot Discord?

Screenshot

• My fix has changed something on UI, a screenshot for others, is best to understand changes.

[netlify]

✔️ Deploy Preview for koda-nuxt ready!

🔨 Explore the source changes: 9459fd3

🔍 Inspect the deploy log: https://app.netlify.com/sites/koda-nuxt/deploys/61a0fd6f120b9b0008d39838

😎 Browse the preview: https://deploy-preview-1110--koda-nuxt.netlify.app

[rhaicode]

Graph found at: /en/rmrk/gallery/:id

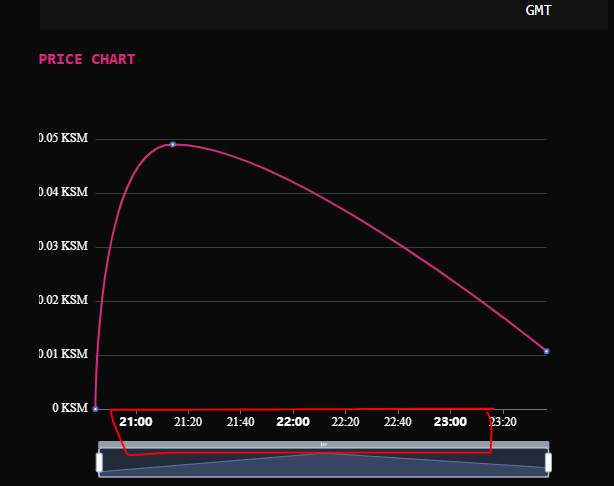

Before (ECharts):

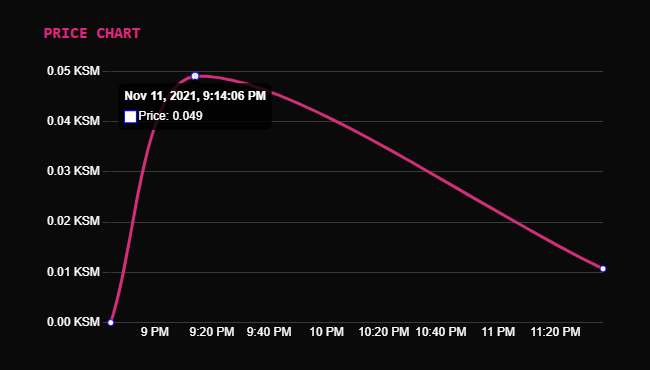

After (ChartJS with chartjs-adapter-luxon) (hovered state):

There are some follow-up questions I want to ask:
1.) Are we going to follow the 24-hour format for the x-axis?
2.) Are we going to support data zooming and panning?

Thanks a lot!

[yangwao]

Amazing progress!

1.) Are we going to follow the 24-hour format for the x-axis?

Thinking we should with our ethos, least possible information, that means having.
Let's keep 24 hours, just HH if possible and have precise HH: MM at the event point. Will see how it looks like.

2 ) Are we going to support data zooming and panning?

That's a tricky one, how hard it would be and how easy would be interacting with that on mobile?

I would propose

• item detail -- w/o zoom/pan - I'm thinking to add pre-made time frames. 7d/14d/1m where 7d could be the default
• collection history -- w/ zoom/pan -- as there is a lot of data

[rhaicode]

1.) All right, got it. I'll be working on it right away.
2.) Unlike ECharts that already supports this by providing a dataZoom property, ChartJS doesn't support it by default. We could add a plugin like chartjs-plugin-zoom

[yangwao]

2.) Unlike ECharts that already supports this by providing a dataZoom property, ChartJS doesn't support it by default. We could add a plugin like chartjs-plugin-zoom

Works well on mobile, let's try using it!

[yangwao]

Chatted with @rhaicode and will migrate collection chart to main-nuxt as well

[rhaicode]

Hello @yangwao. I'd like to ask for your feedback with the chart having zoom plugin?

https://screencast-o-matic.com/watch/crXIezVI11T

[rhaicode]

I would propose

item detail -- w/o zoom/pan - I'm thinking to add pre-made time frames. 7d/14d/1m where 7d could be the default

Currently working on this. I'll remove the zoom/pan from the previous zoom integ and just provide pre-made time frames.

collection history -- w/ zoom/pan -- as there is a lot of data

In order to work on the graph under the Activity tab which is under the Collections tab, the Collections functionality should be added as well since main-nuxt doesn't have the Collections tab above.

[yangwao]

Activity tab which is under the Collections tab, the Collections functionality should be added as well since main-nuxt doesn't have the Collections tab above.

Yes, let's add it :)

[yangwao]

Hello @yangwao. I'd like to ask for your feedback with the chart having zoom plugin?

https://screencast-o-matic.com/watch/crXIezVI11T

Is there possibility to fix Y axis not go below 0 ? as price will be always >= 0.
Otherwise good work there, really looking forward!

[yangwao]

Added test case

• https://deploy-preview-1110--koda-nuxt.netlify.app/rmrk/gallery/7479313-7a147cba01afccbf17-GA-GENERATIVE_ASTERISM_23-0000000000000023
• https://deploy-preview-1110--koda-nuxt.netlify.app/rmrk/gallery/7479313-7a147cba01afccbf17-GA-GENERATIVE_ASTERISM_346-0000000000000346
• https://deploy-preview-1110--koda-nuxt.netlify.app/rmrk/gallery/7479313-7a147cba01afccbf17-GA-GENERATIVE_ASTERISM_342-0000000000000342

[yangwao]

Stradford pinged me on Thursday will check on this one

[rhaicode]

Hello, @yangwao ! This is the screen recording link for the possible v1 for the chartjs integration.
http://somup.com/crXbQl0QE8

[yangwao]

For the collection view, let's make it 100% width.

For item detail, let's add colours.
Green for BUY, List can be as it is.

I sense that zoom in is proportional, but zoom out is not symmetric?

Screen.Recording.2021-11-17.at.13.27.44.mov

Otherwise LGTM for v1 ! :)

[rhaicode]

For the collection view, let's make it 100% width.

• Got this.

For item detail, let's add colours.
Green for BUY, List can be as it is.

• Does this mean the color of the dots on the price chart?

I sense that zoom in is proportional, but zoom out is not symmetric?

• I have only set the minimum range for zoom out to be 0 KSM (so that we won't be able to see negative KSM values). However, what do you mean by proportional and symmetric within this context? I'm only using the default zooming of chartjs-plugin-zoom.

[roiLeo]

Hey!
I would love to see what it looks like but I can't run nuxt branch right now.
Why do we have 2 different Charts component? Different feature/data?

[rhaicode]

@roiLeo hello! yes, we have two since i just pulled from main-nuxt and removed ECharts there. I'll be working on the requested code changes.

[yangwao]

For item detail, let's add colours.
Green for BUY, List can be as it is.

• Does this mean the color of the dots on the price chart?

Let's keep it the same as a graph for collection activity with lines :)

Why do we have 2 different Charts component? Different feature/data?

@roiLeo we will discard the old chart engine for this one which should be more native and works much better on mobile.

[yangwao]

but then it seems that the endpoint for the charts at collections>activity tab is not working? i'm only receiving no data in my end

I guess needs to have more data there, cc @dezine2dev

[yangwao]

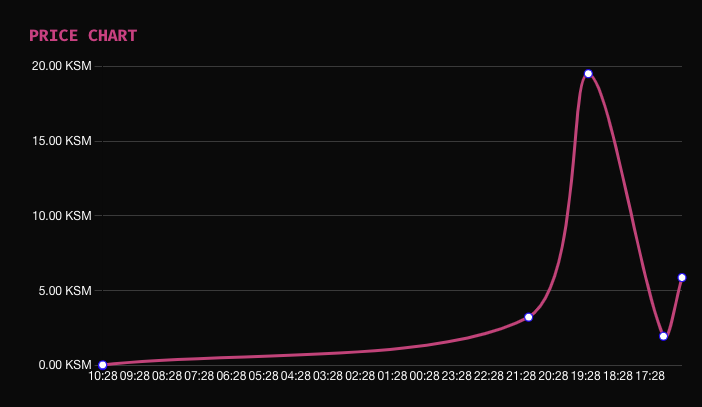

Latest chart for /en/rmrk/gallery/:id http://somup.com/crXrlU0oz5

How does it look like on NFT which has more interactions?

[rhaicode]

@yangwao Something like this? http://somup.com/crX3n80DQE

[yangwao]

@yangwao Something like this? http://somup.com/crX3n80DQE

okay, doable I guess!

I guess we are waiting for the graph for collections and it's everything done?

Check recent merge #1212 and refactor for charts was made in main, in best case migrate that code and I'm happy to top your bounty for this issue!

[yangwao]

Beautiful!
For me it's mergeable @roiLeo @vikiival

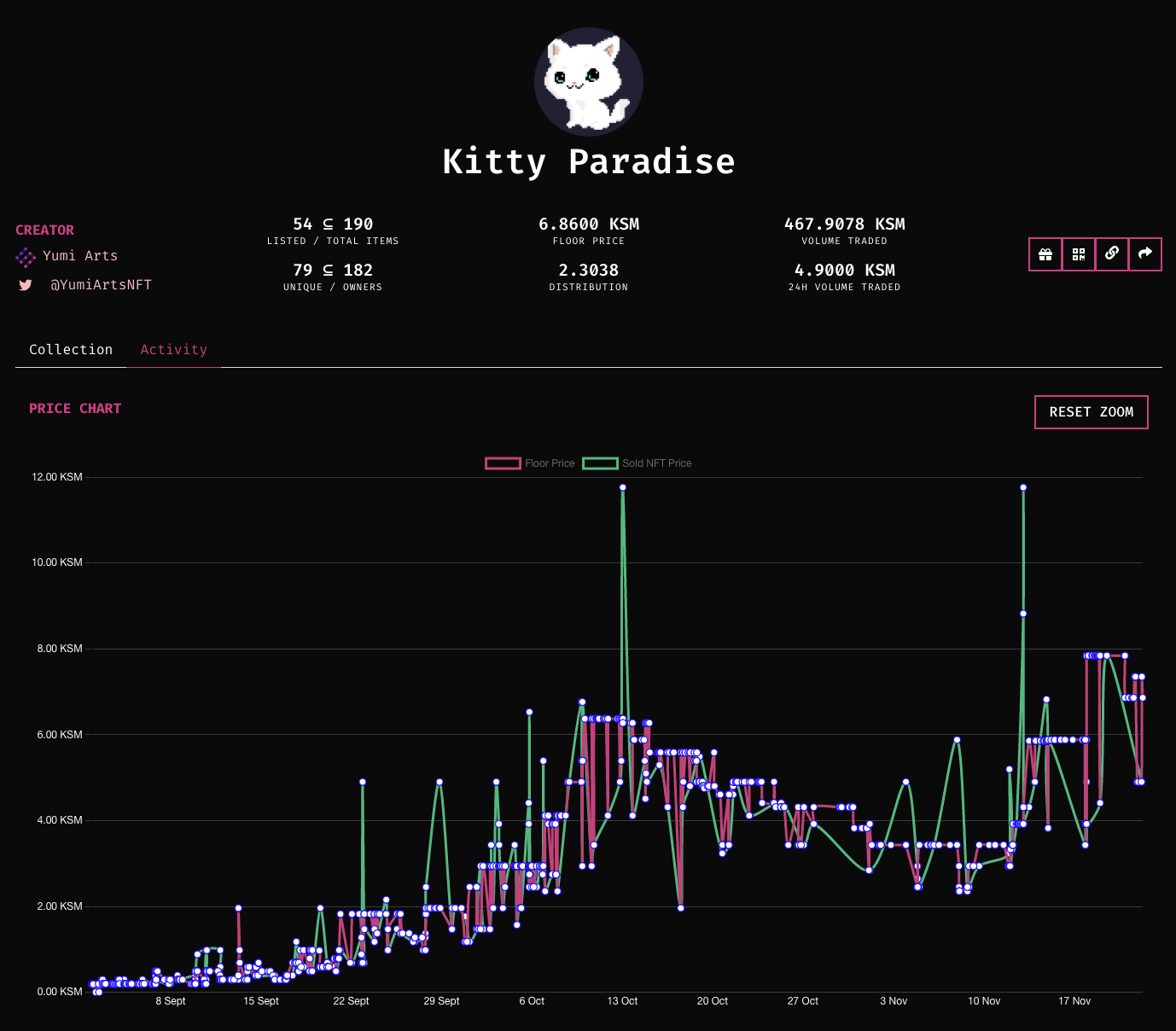

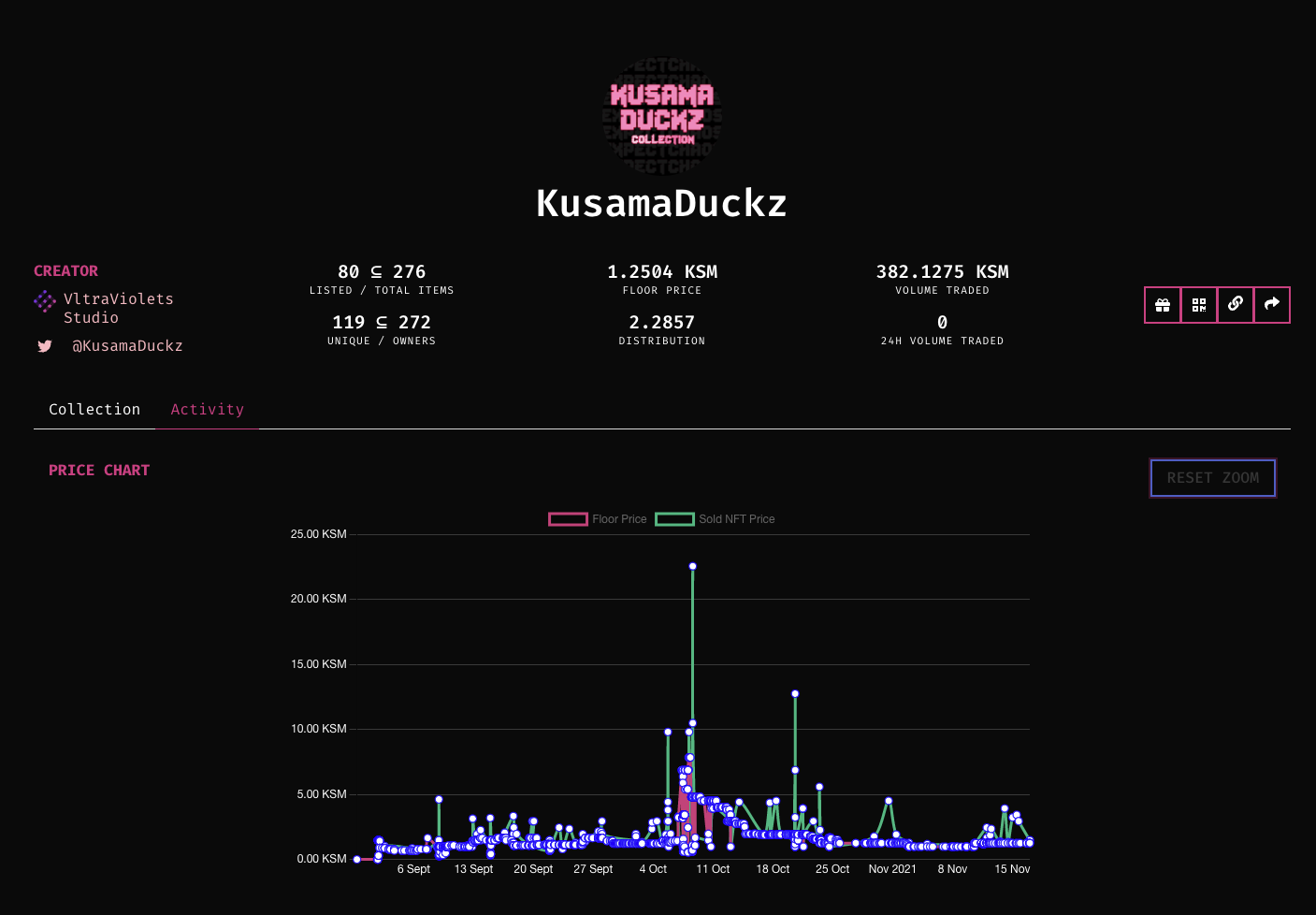

https://deploy-preview-1110--koda-nuxt.netlify.app/en/rmrk/collection/4a5668af20c28c074f-KSMDUCKZ

https://deploy-preview-1110--koda-nuxt.netlify.app/en/rmrk/collection/800f8a914281765a7d-KITTY

[rhaicode]

@yangwao The code for both charts come from main too then just migrated it here to main-nuxt. @roiLeo could also verify

[yangwao]

Hey! I would love to see what it looks like but I can't run nuxt branch right now.

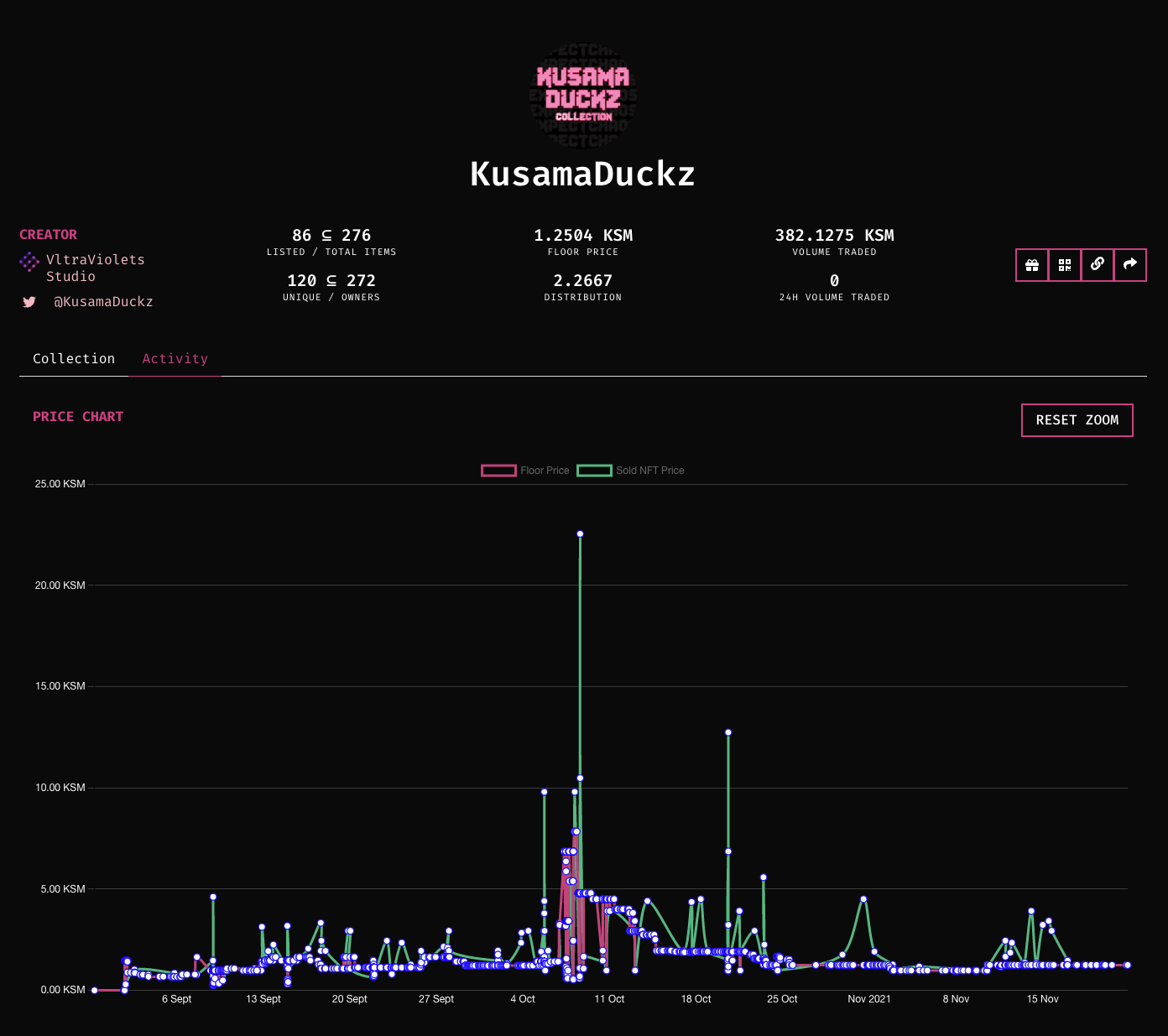

@roiLeo https://deploy-preview-1110--koda-nuxt.netlify.app/en/rmrk/collection/4a5668af20c28c074f-KSMDUCKZ

[yangwao]

Hey! I would love to see what it looks like but I can't run nuxt branch right now.

@roiLeo https://deploy-preview-1110--koda-nuxt.netlify.app/en/rmrk/collection/4a5668af20c28c074f-KSMDUCKZ

@roiLeo let's merge it then if it's good!

[yangwao]

payout $400 sent meanwhile! https://kusama.subscan.io/extrinsic/0x5945e757597ec9c581749d5bad66c52ba3b3148fef35ca60a3801e1f98c3f093

[rhaicode]

received! thanks a lot 🚀

[roiLeo]

Collection charts LGTM, I'm not able to test GalleryItem chart as route not working for now.
We could increase chart height on mobile view (167px is kinda small to me)

[rhaicode]

I'll provide follow up commits. 👍

[vikiival]

Looks legit.
also use linter

[rhaicode]

@roiLeo @vikiival this one's ready for review

[vikiival]

Deff check tomorrow !

[vikiival]

Build is failing because of #1273

[rhaicode]

@vikiival implemented requested code changes

[yangwao]

Amazing job @vikiival @roiLeo @rhaicode
looking forward this stuff live soon(tm) ! :)
