Component lifecycle scheduler optimizations #2065

bakape · 2021-09-19T14:03:29Z

Description

Deduplicated non-first component render() and rendered() calls.
- Deduplicated expensive view() calls - they have been moved to the render lifecycle event.
Reduced indirection and branching in component lifecycle event handlers.
Reduced amount of scheduler calls.
Decreased ComponentState memory footprint.
Optimized scheduler task priorities.
Added scheduler task batching, where possible.

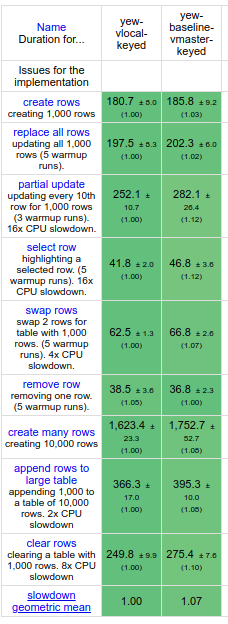

Benchmark results:

Checklist

I have run cargo make pr-flow
I have reviewed my own code
I have adjusted tests

…eduplication

mc1098 · 2021-09-20T15:20:29Z

@intendednull 👋 RE: #1946 I wonder whether you could point your project to this change and see if the issue still persists? I've had a sneaking feeling that it might be due to the scheduler and some of the changes of priority here could possible prevent the issue. I don't have a way to replicate the issue on master which is why I'm asking 🙏. Thank you ❤️!

For me the PR isn't blocked on whether #1946 is fixed, but rather it would be nice to know if this has provided the fix so that the issue can be linked and @bakape can receive a well earned reward 🎉

bakape · 2021-09-20T17:29:26Z

If I understand the issued correctly, me moving the view() call from the update event to the render event would indeed solve #1946. Of course, testing is required to make sure.

bakape · 2021-09-20T17:34:38Z

As a side note, the gains in benchmarks are not really from render deduplication but other lifecycle and scheduler optimizations. The former only comes into play with more complex graph-like update flows.

intendednull · 2021-09-21T02:47:34Z

No luck, issue is present here as well. @mc1098 I think you're right about it being related to the scheduler. At the bottom of this stack trace we see the scheduler is running because an agent message was added (yewdux::service::ServiceBridge<H,SCOPE>::send_service::h1dcf1ea32f5e566), and due to #1954 changes, it executes immediately. So if there are already pending runnables, they'd be executed too. Is it possible a component lifecycle runnable is executing before it was designed to?

panicked at 'VComp is not mounted', /home/intendednull/.cargo/git/checkouts/yew-f43266d198c566fb/83a6f1e/packages/yew/src/virtual_dom/vnode.rs:60:57

Stack:

Error
    at imports.wbg.__wbg_new_59cb74e423758ede (http://localhost:8080/index-f90a2bac3f7d43b5.js:346:19)
    at console_error_panic_hook::Error::new::h35ae2c0762a88a49 (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[19855]:0x43bbd0)
    at console_error_panic_hook::hook_impl::h53e881a07904b706 (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[1807]:0x1d1820)
    at console_error_panic_hook::hook::h7a222228e698e443 (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[22371]:0x45dc37)
    at core::ops::function::Fn::call::hfd2f4b5c3386fe22 (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[18265]:0x422deb)
    at std::panicking::rust_panic_with_hook::h9852a65ac22b441a (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[4231]:0x283208)
    at std::panicking::begin_panic_handler::{{closure}}::hb262f7ea62636fdc (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[8706]:0x346d15)
    at std::sys_common::backtrace::__rust_end_short_backtrace::hbeb6eae20506157b (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[26176]:0x481f9f)
    at rust_begin_unwind (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[20785]:0x448e67)
    at core::panicking::panic_fmt::h1ba034fb58bf295c (http://localhost:8080/index-f90a2bac3f7d43b5_bg.wasm:wasm-function[23198]:0x467c97)

imports.wbg.__wbg_error_4bb6c2a97407129a	@	index-f90a2bac3f7d43b5.js:340
console_error_panic_hook::error::he85ebddb9bd41c88	@	index-f90a2bac3f7d43b5_bg.wasm:0x2fa694
console_error_panic_hook::hook_impl::h53e881a07904b706	@	index-f90a2bac3f7d43b5_bg.wasm:0x1d1919
console_error_panic_hook::hook::h7a222228e698e443	@	index-f90a2bac3f7d43b5_bg.wasm:0x45dc37
core::ops::function::Fn::call::hfd2f4b5c3386fe22	@	index-f90a2bac3f7d43b5_bg.wasm:0x422deb
std::panicking::rust_panic_with_hook::h9852a65ac22b441a	@	index-f90a2bac3f7d43b5_bg.wasm:0x283208
std::panicking::begin_panic_handler::{{closure}}::hb262f7ea62636fdc	@	index-f90a2bac3f7d43b5_bg.wasm:0x346d15
std::sys_common::backtrace::__rust_end_short_backtrace::hbeb6eae20506157b	@	index-f90a2bac3f7d43b5_bg.wasm:0x481f9f
rust_begin_unwind	@	index-f90a2bac3f7d43b5_bg.wasm:0x448e67
core::panicking::panic_fmt::h1ba034fb58bf295c	@	index-f90a2bac3f7d43b5_bg.wasm:0x467c97
core::panicking::panic_display::h0b0fc4d9da8b83e3	@	index-f90a2bac3f7d43b5_bg.wasm:0x41c72b
core::option::expect_failed::h83d8066bdd552df6	@	index-f90a2bac3f7d43b5_bg.wasm:0x474676
core::option::Option<T>::expect::h2a1b0b53dd3e3fa4	@	index-f90a2bac3f7d43b5_bg.wasm:0x3936fa
yew::virtual_dom::vnode::VNode::first_node::h4b6f6eec3263b00b	@	index-f90a2bac3f7d43b5_bg.wasm:0x192006
<yew::virtual_dom::vtag::VTag as yew::virtual_dom::VDiff>::apply::h9eb20bb013692b1c	@	index-f90a2bac3f7d43b5_bg.wasm:0x65d2c
<yew::virtual_dom::vnode::VNode as yew::virtual_dom::VDiff>::apply::h5fb253a66cdac875	@	index-f90a2bac3f7d43b5_bg.wasm:0x9915d
yew::virtual_dom::vlist::VList::apply_unkeyed::{{closure}}::h638eb67ab5c74778	@	index-f90a2bac3f7d43b5_bg.wasm:0x207193
yew::virtual_dom::vlist::VList::apply_unkeyed::h4d2b265535aa8e12	@	index-f90a2bac3f7d43b5_bg.wasm:0x8a4da
<yew::virtual_dom::vlist::VList as yew::virtual_dom::VDiff>::apply::h6e9cf17ee6429f81	@	index-f90a2bac3f7d43b5_bg.wasm:0x94616
<yew::virtual_dom::vtag::VTag as yew::virtual_dom::VDiff>::apply::h9eb20bb013692b1c	@	index-f90a2bac3f7d43b5_bg.wasm:0x666bc
<yew::virtual_dom::vnode::VNode as yew::virtual_dom::VDiff>::apply::h5fb253a66cdac875	@	index-f90a2bac3f7d43b5_bg.wasm:0x9915d
<yew::html::component::lifecycle::RenderRunner<COMP> as yew::scheduler::Runnable>::run::h7219dad7336ffd0d	@	index-f90a2bac3f7d43b5_bg.wasm:0xe23d9
yew::scheduler::start::{{closure}}::ha2dbf821f76d73f2	@	index-f90a2bac3f7d43b5_bg.wasm:0x12e74c
std::thread::local::LocalKey<T>::try_with::ha02e7f5aae6c29f7	@	index-f90a2bac3f7d43b5_bg.wasm:0x2b4fad
std::thread::local::LocalKey<T>::with::h29d21b704e850391	@	index-f90a2bac3f7d43b5_bg.wasm:0x3a93c5
yew::scheduler::start::hbc7816ab6197dbb3	@	index-f90a2bac3f7d43b5_bg.wasm:0x4821f7
yew::scheduler::push::h89c9c3fa97620461	@	index-f90a2bac3f7d43b5_bg.wasm:0x3d0071
yew_agent::link::AgentScope<AGN>::send::hefe0ebd30fafff8a	@	index-f90a2bac3f7d43b5_bg.wasm:0x2c9aca
<yew_agent::local::context::ContextBridge<AGN> as yew_agent::Bridge<AGN>>::send::h0be3730765c74a6e	@	index-f90a2bac3f7d43b5_bg.wasm:0x26bfaa
yewdux::service::ServiceBridge<H,SCOPE>::send_service::h1dcf1ea32f5e566

Am becoming more convinced my issue is a little different than originally posted in #1946.

mc1098 · 2021-09-21T07:22:55Z

No luck, issue is present here as well.

Shame :) but thank you so much @intendednull for trying ❤️

Is it possible a component lifecycle runnable is executing before it was designed to?

That was my thinking, we probably should include some logging/tracing in debug so that we can actually see what lifecycle events are happening and when. This would be a different PR ofc.

Am becoming more convinced my issue is a little different than originally posted in #1946.

I'm not sure tbh 🙃

mc1098

Looks good to me :)

I appreciate all the comments, especially for each step in fill_queue 👍

bakape · 2021-09-21T07:33:01Z

logging/tracing in debug so that we can actually see what lifecycle

events are happening and when Already on it. No shame in adding it to this PR.

…

On Tue, 21 Sept 2021 at 10:29, mc1098 ***@***.***> wrote: ***@***.**** approved this pull request. Looks good to me :) I appreciate all the comments, especially for each step in fill_queue 👍 — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub <#2065 (review)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AB347MDDWFQ4NX5BBMBMTRTUDAX6LANCNFSM5EKL4M6Q> . Triage notifications on the go with GitHub Mobile for iOS <https://apps.apple.com/app/apple-store/id1477376905?ct=notification-email&mt=8&pt=524675> or Android <https://play.google.com/store/apps/details?id=com.github.android&referrer=utm_campaign%3Dnotification-email%26utm_medium%3Demail%26utm_source%3Dgithub>.

Pull request has been modified.

bakape · 2021-09-21T10:15:45Z

@intendednull Try now! Panic message should be more helpful. Make sure to build it in debug mode!

intendednull · 2021-09-21T18:23:08Z

@bakape okay ya! now I'm getting panicked at 'no node_ref; VComp should be mounted after: []

bakape · 2021-09-21T18:29:42Z

Okay, now we know it's not an early deletion but a legit lack of mounting.

…

On Tue, 21 Sep 2021, 21:23 Noah Corona, ***@***.***> wrote: @bakape <https://github.com/bakape> okay ya! now I'm getting panicked at 'no node_ref; VComp should be mounted after: [] — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub <#2065 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AB347MEZBPPFGWJ3LHGX2OTUDDERNANCNFSM5EKL4M6Q> . Triage notifications on the go with GitHub Mobile for iOS <https://apps.apple.com/app/apple-store/id1477376905?ct=notification-email&mt=8&pt=524675> or Android <https://play.google.com/store/apps/details?id=com.github.android&referrer=utm_campaign%3Dnotification-email%26utm_medium%3Demail%26utm_source%3Dgithub>.

mc1098

Looks good to me 🎉
Thanks for adding event logging ❤️

.github/workflows/pull-request.yml

Pull request has been modified.

bakape added 5 commits September 12, 2021 10:38

yew: partial render deduplication implementation

84cbbf1

Merge remote-tracking branch 'upstream/master' into optimize/render-d…

ef135d5

…eduplication

Merge remote-tracking branch 'upstream/master' into optimize/render-d…

04ead75

…eduplication

yew/scheduler: batching and comment fixes

8271cf1

yew/scheduler: clippy fixes

83a6f1e

mc1098 added the A-yew Area: The main yew crate label Sep 20, 2021

mc1098 previously approved these changes Sep 21, 2021

View reviewed changes

yew/vcomp: add lifecycle debug logging

e04bbf8

bakape added 2 commits September 21, 2021 13:33

ci: add release clippy and cargo check passes

3a80240

ci: fix release check

776f7ee

mc1098 previously approved these changes Sep 22, 2021

View reviewed changes

siku2 reviewed Sep 22, 2021

View reviewed changes

.github/workflows/pull-request.yml Outdated Show resolved Hide resolved

ci: remove duplicate check calls

e8ad50e

siku2 merged commit a442ce5 into yewstack:master Sep 22, 2021
