Perform SSA variable renaming. #14

vext01 · 2019-04-23T13:39:07Z

Please check carefully. I've been working on this code for so long I feel I can barely see the wood for the trees!

There's a ykpack change associated with this PR. Coming soon.

We perform renaming in-place using a slightly modified version of the
algorithm from the book: Modern Compiler Implementation in Java, 2nd
edition, Andrew Appel.

We experimented with the algorithm from the SSA book by Jeremy Singer
but couldn't get it to work. I suspect there is an error in the
published algorithm, but I may be wrong.

For now this only renames variables for implemented TIR bytecodes, and
not yet in terminators (so return terminators currently always return
variable 0, which will need to be changed).

It may be possible to have the variables numbers start from zero in the
resulting bytecode, but I'm keen to get this in first.

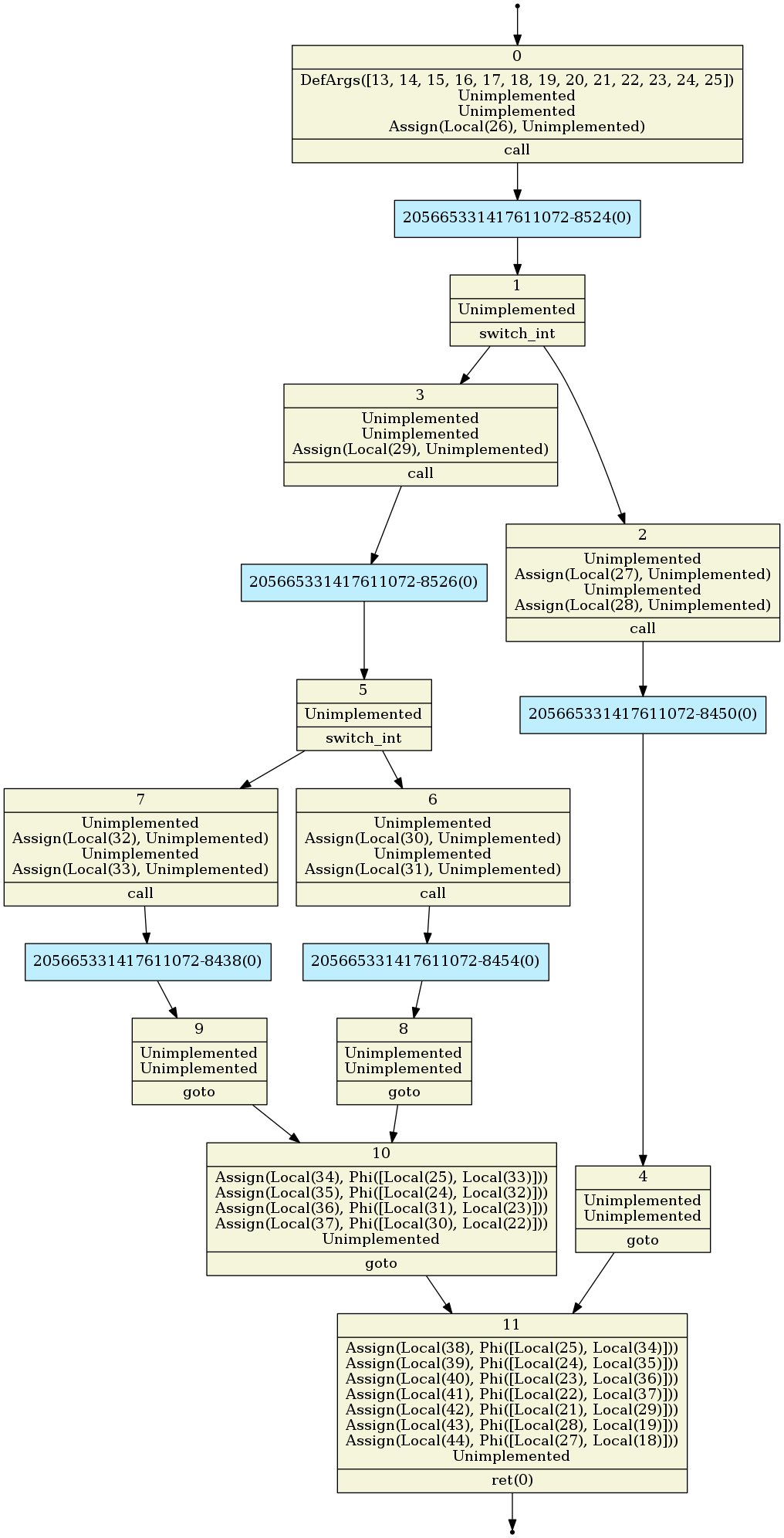

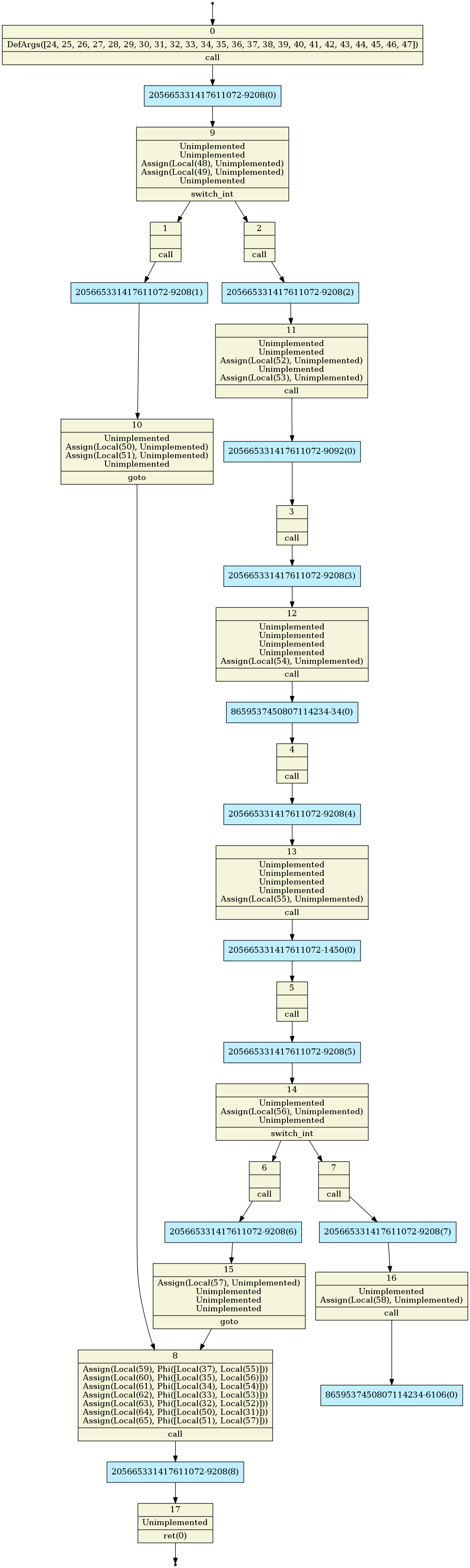

Here are some example CFGs:

vext01 · 2019-04-23T13:40:15Z

src/librustc_yk_sections/Cargo.toml

@@ -12,7 +12,8 @@ test = false
 [dependencies]
 rustc = { path = "../librustc" }
 rustc_yk_link = { path = "../librustc_yk_link" }
-ykpack = { git = "https://github.com/softdevteam/ykpack" }
+#ykpack = { git = "https://github.com/softdevteam/ykpack" }
+ykpack = { path = "../../../ykpack" }


This will need to be revised once the ykpack change is in.

vext01 · 2019-04-23T13:42:00Z

I just realised that ykpack is now in the mono repo. We could do with that transition being complete before I raise the companion PR to this PR.

ltratt · 2019-04-23T15:04:45Z

I just realised that ykpack is now in the mono repo. We could do with that transition being complete before I raise the companion PR to this PR.

The transition is complete isn't it?

ltratt · 2019-04-23T15:08:04Z

src/librustc_data_structures/graph/dominators/mod.rs

@@ -118,6 +118,15 @@ impl<Node: Idx> Dominators<Node> {
        self.immediate_dominators[node].unwrap()
    }

+    /// Find the children of a node in the dominator tree.
+    pub fn immediately_dominates(&self, node: Node) -> Vec<Node> {


I don't know if this will be possible (it probably depends on the borrow checker), but it would almost certainly be faster to make this an iterator rather than a producer of a Vec. You could probably get away with -> impl Iterator<Node> or similar.

There was a reason why I didn't do this, but I don't recall what it was. Let me experiment and come back to you.

vext01 · 2019-04-23T15:08:05Z

The transition is complete isn't it?

I don't think so. We have an outstanding PR here:
ykjit/yk#1

ltratt · 2019-04-23T15:21:35Z

src/librustc_yk_sections/emit_tir.rs

 use rustc_data_structures::fx::FxHashSet;

 const SECTION_NAME: &'static str = ".yk_tir";
 const TMP_EXT: &'static str = ".yk_tir.tmp";

+/// The pre-SSA return value variable. In the pre-SSA TIR, we need the return value to reside at an


The first half of this comment makes sense, but the second half is confusing. Possibly it's just because some sentences are in the wrong order?

Can you expand on that -- it makes sense to me, but then I'm not a good critic for my own work.

I think you just need to try rephrasing it. I can't make sense of the comment as a whole at the moment.

ltratt · 2019-04-23T15:21:48Z

src/librustc_yk_sections/emit_tir.rs

@@ -57,25 +72,52 @@ struct ConvCx<'a, 'tcx, 'gcx> {
    /// Maps each block to the variable it defines. This is what Appel calls `A_{orig}`.
    block_defines: RefCell<IndexVec<BasicBlock, FxHashSet<TirLocal>>>,
    /// Monotonically increasing number used to give TIR variables a unique ID.
+    /// Note that a 0 is reserved for `PRE_SSA_RET_VAR`.


"a 0" -> "0"

ltratt · 2019-04-23T15:22:25Z

src/librustc_yk_sections/emit_tir.rs

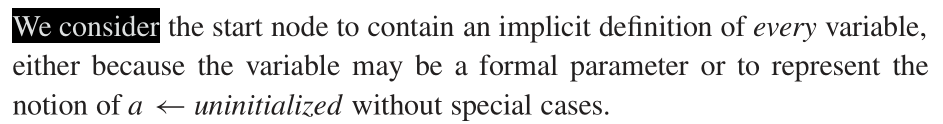

+    /// From the Appel book:
+    ///     "We consider the start node to contain an implicit definition of every variable,
+    ///     either because the variable may be a formal parameter or to represent the notion of
+    ///     a ← uninitialized without special cases.


I can't parse the part of the comment on this line.

Something has gone wrong somewhere. That's supposed to be \bottom. Will fix.

Actually I was wrong. This is verbatim from the book.

maybe we can delimit the abstract algebra in some quotes for readability. I think the problem is notion of a <- uninitialized is hard to parse.

Agreed, maybe this just needs a bit of rephrasing / reformatting.

I added the quotes in the last commit. Does that work for you?

ltratt · 2019-04-23T15:26:52Z

src/librustc_yk_sections/emit_tir.rs

+        let n_usize = n as usize;
+        // We have to remember the variables whose stacks we must pop from when we come back from
+        // recursion. These must be the variables *before* they were renamed.
+        let mut pop_later = Vec::new();


Can a variable appear more than once in here? Does it happen often that variables end up in here?

Every variable assignment in the block we are processing will push to this vector. The same variable may appear more than once if a block assigns to the same variable many times.

So this should probably be a set to avoid (I assume pointlessly) poping the same thing over and over again?

If a variable is assigned to X times, then we need to pop X times.

The the algorithm recursively walks the dominator tree depth-first. When it sees an assignment to a variable, it makes a new SSA variable, rewrites the old variable. and pushes the new variable onto the stack of the corresponding old variable. When we are bubbling up from recursion, we have to revert to the previous SSA versions of the variables. So if a block assigned to a variable z twice, we'd need to revert to z as of two assignments ago, thus popping twice.

Hard to explain...

ltratt · 2019-04-23T15:27:11Z

src/librustc_yk_sections/emit_tir.rs

+            // "Suppose n is the jth predecessor of y".
+            let j = mir.predecessors_for(y).iter().position(|b| b == &n_idx).unwrap();
+            for st in &mut blks[y.as_usize()].stmts {
+                match st.phi_arg_mut(j) {


if let Some(ref mut a) = st.phi_arg_mut(j) { ... }

vext01 · 2019-04-24T11:36:47Z

This should address the comments.

Untested. Building now...

vext01 · 2019-04-24T13:15:10Z

Untested. Building now...

Our yk_tir test passes and manual inspection of the graphs show up nothing dodgy.

ltratt · 2019-04-24T14:34:14Z

src/librustc_yk_sections/emit_tir.rs

+/// The pre-SSA return value variable. In MIR, a return terminator implicitly returns variable
+/// zero. We can't do this in TIR because TIR is in SSA form and the variable we return depends
+/// upon which SSA variable reaches the terminator. So, during initial TIR lowering, we convert the
+/// implicit MIR terminator to an explicit TIR terminator returning variable index zero initially.


I think we can remove the last "initially".

ltratt · 2019-04-24T14:34:49Z

src/librustc_yk_sections/emit_tir.rs

-                    None => (), // It wasn't a Phi. Do nothing.
+                if let Some(ref mut a) = st.phi_arg_mut(j) {
+                    // We only get here if `st` was a Phi.
+                    let i = self.stack[**a as usize].last().cloned().unwrap();


let i = is longer than **a =. Can we use the latter?

We can, but I'd rather keep it as-is for parity with the algorithm in the book:

vext01 · 2019-04-25T08:55:37Z

One commit to address your comment, another to give the instruction that does the SSA definitions a better name.

If you are happy, we can squash this ready for merge, but we cannot merge just yet. There's a yk change that I'm about to raise a PR for and that depends on the new tarball PR with cargo.

Sadly my stage 2 failed because I forgot to specify the config file on the command line and now I have to rebuild...

ltratt · 2019-04-25T12:10:48Z

Please squash.

We perform renaming in-place using a slightly modified version of the algorithm from the book: Modern Compiler Implementation in Java, 2nd edition, Andrew Appel. We experimented with the algorithm from the SSA book by Jeremy Singer but couldn't get it to work. I suspect there is an error in the published algorithm, but I may be wrong. I've email Jeremy. For now this only renames variables for implemented TIR bytecodes, and not yet in terminators (so return terminators currently always return variable 0, which will need to be changed). It may be possible to have the variables numbers start from zero in the resulting bytecode, but I'm keen to get this in first.

vext01 · 2019-04-25T12:55:39Z

squashed. Now just waiting on the ykrustc archives. Once that's done, I'll flip the ykpack dependency over to yk.

vext01 · 2019-05-01T09:12:19Z

This is now irrelevant.
