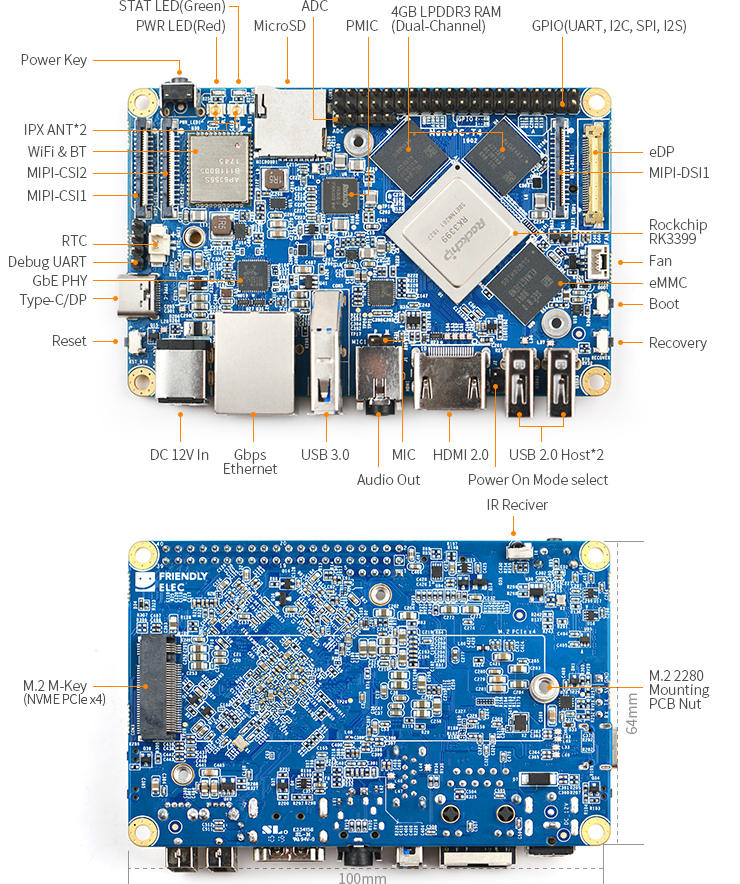

能不能适配下NanoPC-T4？

[o5rhaxzc]

官方wiki：https://wiki.friendlyelec.com/wiki/index.php/NanoPC-T4/zh
这个应该是主线dts：https://github.com/torvalds/linux/blob/master/arch/arm64/boot/dts/rockchip/rk3399-nanopc-t4.dts
从armbian/community里抠出来的dtb：rk3399-nanopc-t4.zip

[ophub]

我添加好了，你到releases里下载测试下，反馈下结果

[o5rhaxzc]

刷完重新上电开机就卡住了

[o5rhaxzc]

重新往sd卡写了一次

补一份ttl

ttl.log

DDR Version 1.25 20210517
In
Channel 0: LPDDR3, 933MHz
CS = 0
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
CS = 1
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
Bus Width=32 Col=10 Bank=8 Row=15/15 CS=2 Die Bus-Width=32 Size=2048MB
Channel 1: LPDDR3, 933MHz
CS = 0
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
CS = 1
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
Bus Width=32 Col=10 Bank=8 Row=15/15 CS=2 Die Bus-Width=32 Size=2048MB
256B stride
ch 0 ddrconfig = 0x101, ddrsize = 0x2020
ch 1 ddrconfig = 0x101, ddrsize = 0x2020
pmugrf_os_reg[2] = 0x3AA0DAA0, stride = 0xD
OUT

U-Boot SPL 2022.07-armbian (Dec 24 2023 - 08:28:04 +0000)
Trying to boot from MMC1
NOTICE:  BL31: v1.3(release):845ee93
NOTICE:  BL31: Built : 15:51:11, Jul 22 2020
NOTICE:  BL31: Rockchip release version: v1.1
INFO:    GICv3 with legacy support detected. ARM GICV3 driver initialized in EL3
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    plat_rockchip_pmu_init(1196): pd status 3e
INFO:    BL31: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader, Booting device without OPTEE initialization. SMC`s destined for OPTEE will return SMC_UNK
ERROR:   Error initializing runtime service opteed_fast
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0x200000
INFO:    SPSR = 0x3c9


U-Boot 2022.07-armbian (Dec 24 2023 - 08:28:04 +0000)

SoC: Rockchip rk3399
Reset cause: POR
Model: FriendlyElec NanoPC-T4
DRAM:  3.9 GiB
PMIC:  RK808
Core:  290 devices, 29 uclasses, devicetree: separate
MMC:   mmc@fe310000: 3, mmc@fe320000: 1, mmc@fe330000: 0
Loading Environment from MMC... *** Warning - No block device, using default environment

In:    serial
Out:   serial
Err:   serial
Model: FriendlyElec NanoPC-T4
Net:   eth0: ethernet@fe300000
Hit any key to stop autoboot:  0
starting USB...
Bus usb@fe380000: USB EHCI 1.00
Bus usb@fe3c0000: USB EHCI 1.00
Bus usb@fe900000: Register 2000140 NbrPorts 2
Starting the controller
USB XHCI 1.10
scanning bus usb@fe380000 for devices... 1 USB Device(s) found
scanning bus usb@fe3c0000 for devices... 1 USB Device(s) found
scanning bus usb@fe900000 for devices... 1 USB Device(s) found
     scanning usb for storage devices... 0 Storage Device(s) found

Device 0: unknown device
switch to partitions #0, OK
mmc1 is current device
Scanning mmc 1:1...
Found U-Boot script /boot.scr
3252 bytes read in 5 ms (634.8 KiB/s)
## Executing script at 00500000
Boot script loaded from mmc 1
270 bytes read in 4 ms (65.4 KiB/s)
16889124 bytes read in 722 ms (22.3 MiB/s)
33858048 bytes read in 1441 ms (22.4 MiB/s)
77189 bytes read in 12 ms (6.1 MiB/s)
Failed to load '/dtb/rockchip/overlay/rk3399-fixup.scr'
Unknown command 'kaslrseed' - try 'help'
## Loading init Ramdisk from Legacy Image at 06000000 ...
 Image Name:   uInitrd
 Image Type:   AArch64 Linux RAMDisk Image (gzip compressed)
 Data Size:    16889060 Bytes = 16.1 MiB
 Load Address: 00000000
 Entry Point:  00000000
 Verifying Checksum ... OK
## Flattened Device Tree blob at 01f00000
 Booting using the fdt blob at 0x1f00000
 Loading Ramdisk to f0eec000, end f1f074e4 ... OK
 Loading Device Tree to 00000000f0e70000, end 00000000f0eebfff ... OK

Starting kernel ...

efi_free_pool: illegal free 0x00000000f0f09040
efi_free_pool: illegal free 0x00000000f0f06040
efi_free_pool: illegal free 0x00000000f0f04040
done.

Begin: Mounting root file system ... Begin: Running /scripts/local-top ... done.

Begin: Running /scripts/local-premount ... Scanning for Btrfs filesystems

done.

Warning: fsck not present, so skipping root file system

done.

Begin: Running /scripts/local-bottom ... done.

Begin: Running /scripts/init-bottom ... done.

SELinux:  Could not open policy file <= /etc/selinux/targeted/policy/policy.33:  No such file or directory



Welcome to Armbian-unofficial 24.2.0-trunk bookworm!



[  OK  ] Created slice system-modprlice - Slice /system/modprobe.

[  OK  ] Created slice system-seria - Slice /system/serial-getty.

[  OK  ] Created slice system-syste - Slice /system/systemd-fsck.

[  OK  ] Created slice user.slice - User and Session Slice.

[  OK  ] Started systemd-ask-passwo Requests to Wall Directory Watch.

[  OK  ] Set up automount proc-sys-rmats File System Automount Point.

[  OK  ] Reached target integrityseLocal Integrity Protected Volumes.

[  OK  ] Reached target slices.target - Slice Units.

[  OK  ] Reached target swap.target - Swaps.

[  OK  ] Reached target time-set.target - System Time Set.

[  OK  ] Reached target veritysetup - Local Verity Protected Volumes.

[  OK  ] Listening on rpcbind.socke RPCbind Server Activation Socket.

[  OK  ] Listening on syslog.socket - Syslog Socket.

[  OK  ] Listening on systemd-fsckdsck to fsckd communication Socket.

[  OK  ] Listening on systemd-initc initctl Compatibility Named Pipe.

[  OK  ] Listening on systemd-journsocket - Journal Audit Socket.

[  OK  ] Listening on systemd-journt - Journal Socket (/dev/log).

[  OK  ] Listening on systemd-journald.socket - Journal Socket.

[  OK  ] Listening on systemd-udevd.socket - udev Control Socket.

[  OK  ] Listening on systemd-udevdl.socket - udev Kernel Socket.

       Mounting dev-hugepages.mount - Huge Pages File System...

       Mounting dev-mqueue.mountPOSIX Message Queue File System...

       Mounting sys-kernel-debug. - Kernel Debug File System...

       Starting fake-hwclock.servestore / save the current clock...

       Starting keyboard-setup.seSet the console keyboard layout...

       Starting kmod-static-nodesate List of Static Device Nodes...

       Starting modprobe@configfsm - Load Kernel Module configfs...

       Starting modprobe@dm_mod.s[0m - Load Kernel Module dm_mod...

       Starting modprobe@drm.service - Load Kernel Module drm...

       Starting modprobe@efi_psto- Load Kernel Module efi_pstore...

       Starting modprobe@fuse.sere - Load Kernel Module fuse...

       Starting modprobe@loop.sere - Load Kernel Module loop...

       Starting systemd-fsck-rootile System Check on Root Device...

       Starting systemd-modules-lrvice - Load Kernel Modules...

       Starting systemd-udev-trig[0m - Coldplug All udev Devices...

[  OK  ] Mounted dev-hugepages.mount - Huge Pages File System.

[  OK  ] Mounted dev-mqueue.mount- POSIX Message Queue File System.

[  OK  ] Mounted sys-kernel-debug.mnt - Kernel Debug File System.

[  OK  ] Finished kmod-static-nodesreate List of Static Device Nodes.

[  OK  ] Finished modprobe@configfs[0m - Load Kernel Module configfs.

[  OK  ] Finished modprobe@drm.service - Load Kernel Module drm.

[  OK  ] Finished modprobe@efi_pstom - Load Kernel Module efi_pstore.

[  OK  ] Finished modprobe@fuse.service - Load Kernel Module fuse.

[  OK  ] Finished modprobe@loop.service - Load Kernel Module loop.

       Mounting sys-fs-fuse-conne - FUSE Control File System...

       Mounting sys-kernel-configernel Configuration File System...

[  OK  ] Started systemd-fsckd.servtem Check Daemon to report status.

[  OK  ] Finished fake-hwclock.serv Restore / save the current clock.

[  OK  ] Finished modprobe@dm_mod.se - Load Kernel Module dm_mod.

[  OK  ] Mounted sys-fs-fuse-connecnt - FUSE Control File System.

[  OK  ] Mounted sys-kernel-config. Kernel Configuration File System.

[  OK  ] Finished systemd-modules-lservice - Load Kernel Modules.

       Starting systemd-sysctl.sece - Apply Kernel Variables...

[    8.855572] systemd[1]: Finished keyboard-setup.service - Set the console keyboard layout.
[  OK  ] Finished keyboard-setup.se- Set the console keyboard layout.

[    8.876456] systemd[1]: Finished systemd-sysctl.service - Apply Kernel Variables.
[  OK  ] Finished systemd-sysctl.service - Apply Kernel Variables.

[    8.888529] systemd[1]: Finished systemd-fsck-root.service - File System Check on Root Device.
[  OK  ] Finished systemd-fsck-root File System Check on Root Device.

[    8.908557] systemd[1]: Starting systemd-remount-fs.service - Remount Root and Kernel File Systems...
       Starting systemd-remount-fnt Root and Kernel File Systems...

[    8.951638] EXT4-fs (mmcblk1p2): re-mounted. Quota mode: none.
[    8.955920] systemd[1]: Finished systemd-remount-fs.service - Remount Root and Kernel File Systems.
[  OK  ] Finished systemd-remount-fount R[    8.957426] systemd[1]: systemd-pstore.service - Platform Persistent Storage Archival was skipped because of an unmet condition check (ConditionDirectoryNotEmpty=/sys/fs/pstore).
oot and Kernel File Systems.

[    8.980591] systemd[1]: Starting systemd-random-seed.service - Load/Save Random Seed...
       Starting systemd-random-seice - Load/Save Random Seed...

[    8.985982] systemd[1]: Starting systemd-sysusers.service - Create System Users...
       Starting systemd-sysusers.rvice - Create System Users...

[    9.094572] systemd[1]: Finished systemd-random-seed.service - Load/Save Random Seed.
[  OK  ] Finished systemd-random-service - Load/Save Random Seed.

[    9.098628] systemd[1]: Finished systemd-udev-trigger.service - Coldplug All udev Devices.
[  OK  ] Finished systemd-udev-trige - Coldplug All udev Devices.

[    9.101199] systemd[1]: Reached target first-boot-complete.target - First Boot Complete.
[  OK  ] Reached target first-boot-.target - First Boot Complete.

[    9.137239] systemd[1]: Starting ifupdown-pre.service - Helper to synchronize boot up for ifupdown...
       Starting ifupdown-pre.servynchronize boot up for ifupdown...

[    9.140895] systemd[1]: Finished systemd-sysusers.service - Create System Users.
[  OK  ] Finished systemd-sysusers.service - Create System Users.

[    9.148076] systemd[1]: Starting systemd-tmpfiles-setup-dev.service - Create Static Device Nodes in /dev...
       Starting systemd-tmpfiles-ate Static Device Nodes in /dev...

[    9.160541] systemd[1]: Finished ifupdown-pre.service - Helper to synchronize boot up for ifupdown.
[  OK  ] Finished ifupdown-pre.serv synchronize boot up for ifupdown.

[    9.224213] systemd[1]: Finished systemd-tmpfiles-setup-dev.service - Create Static Device Nodes in /dev.
[  OK  ] Finished systemd-tmpfiles-reate Static Device Nodes in /dev.

[    9.227860] systemd[1]: Reached target local-fs-pre.target - Preparation for Local File Systems.
[  OK  ] Reached target local-fs-prreparation for Local File Systems.

[    9.260881] systemd[1]: Starting systemd-udevd.service - Rule-based Manager for Device Events and Files...
       Starting systemd-udevd.serger for Device Events and Files...

[    9.513648] systemd[1]: Started systemd-udevd.service - Rule-based Manager for Device Events and Files.
[  OK  ] Started systemd-udevd.servnager for Device Events and Files.

[    9.548312] systemd[1]: Starting plymouth-start.service - Show Plymouth Boot Screen...
       Starting plymouth-start.se[0m - Show Plymouth Boot Screen...

[    9.670832] systemd[1]: Started plymouth-start.service - Show Plymouth Boot Screen.
[  OK  ] Started plymouth-start.sere - Show Plymouth Boot Screen.

[    9.840789] systemd[1]: Found device dev-ttyS2.device - /dev/ttyS2.
[  OK  ] Found device dev-ttyS2.device - /dev/ttyS2.

[    9.870036] systemd[1]: Found device dev-disk-by\x2duuid-3aa6b54e\x2d5712\x2d449e\x2da5f9\x2d58b51a11fd76.device - /dev/disk/by-uuid/3aa6b54e-5712-449e-a5f9-58b51a11fd76.
[  OK  ] Found device dev-disk-by\x6b54e-5712-449e-a5f9-58b51a11fd76.

[    9.882976] systemd[1]: systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch was skipped because of an unmet condition check (ConditionPathExists=!/run/plymouth/pid).
[    9.884924] systemd[1]: Started systemd-ask-password-plymouth.path - Forward Password Requests to Plymouth Directory Watch.
[    9.886064] systemd[1]: Reached target cryptsetup.target - Local Encrypted Volumes.
[  OK  ] Started systemd-ask-passwouests [    9.886806] systemd[1]: Reached target paths.target - Path Units.
to Plymouth Directory Watch.

[  OK  ] Reached target cryptsetup.get - Local Encrypted Volumes.

[  OK  ] Reached target paths.target - Path Units.

[    9.928194] systemd[1]: Mounting tmp.mount - /tmp...
       Mounting tmp.mount - /tmp...

[    9.931663] systemd[1]: Starting systemd-fsck@dev-disk-by\x2duuid-3aa6b54e\x2d5712\x2d449e\x2da5f9\x2d58b51a11fd76.service - File System Check on /dev/disk/by-uuid/3aa6b54e-5712-449e-a5f9-58b51a11fd76...
       Starting systemd-fsck@dev-54e-5712-449e-a5f9-58b51a11fd76...

[    9.939301] systemd[1]: Mounted tmp.mount - /tmp.
[  OK  ] Mounted tmp.mount - /tmp.

[    9.971642] Bluetooth: Core ver 2.22
[    9.971985] Bluetooth: Starting self testing
[    9.981122] dw_wdt ff848000.watchdog: No valid TOPs array specified
[   10.005909] Bluetooth: ECDH test passed in 32759 usecs
[   10.008635] Bluetooth: SMP test passed in 2165 usecs
[   10.015375] rockchip-rga ff680000.rga: HW Version: 0x03.02
[   10.017085] rockchip-rga ff680000.rga: Registered rockchip-rga as /dev/video0
[   10.035757] Bluetooth: Finished self testing
[   10.036207] NET: Registered PF_BLUETOOTH protocol family
[   10.036676] Bluetooth: HCI device and connection manager initialized
[   10.037239] Bluetooth: HCI socket layer initialized
[   10.037672] Bluetooth: L2CAP socket layer initialized
[   10.038133] Bluetooth: SCO socket layer initialized
[   10.041785] panfrost ff9a0000.gpu: clock rate = 500000000
[   10.043634] rockchip_vdec: module is from the staging directory, the quality is unknown, you have been warned.
[   10.045103] panfrost ff9a0000.gpu: mali-t860 id 0x860 major 0x2 minor 0x0 status 0x0
[   10.045815] panfrost ff9a0000.gpu: features: 00000000,00000407, issues: 00000000,24040400
[   10.046440] rkvdec ff660000.video-codec: Adding to iommu group 1
[   10.046544] panfrost ff9a0000.gpu: Features: L2:0x07120206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7
[   10.048143] panfrost ff9a0000.gpu: shader_present=0xf l2_present=0x1
[   10.076395] [drm] Initialized panfrost 1.2.0 20180908 for ff9a0000.gpu on minor 1
[   10.076887] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[   10.131387] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[   10.132695] cfg80211: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[   10.156848] Bluetooth: HCI UART driver ver 2.3
[   10.157275] Bluetooth: HCI UART protocol H4 registered
[   10.157736] Bluetooth: HCI UART protocol BCSP registered
[   10.158544] Bluetooth: HCI UART protocol LL registered
[   10.159024] Bluetooth: HCI UART protocol ATH3K registered
[   10.159594] Bluetooth: HCI UART protocol Three-wire (H5) registered
[   10.160559] Bluetooth: HCI UART protocol Intel registered
[   10.161889] hci_uart_bcm serial0-0: supply vbat not found, using dummy regulator
[   10.162779] hci_uart_bcm serial0-0: supply vddio not found, using dummy regulator
[   10.164095] Bluetooth: HCI UART protocol Broadcom registered
[   10.166120] Bluetooth: HCI UART protocol QCA registered
[   10.166609] Bluetooth: HCI UART protocol AG6XX registered
[   10.167225] Bluetooth: HCI UART protocol Marvell registered
[   10.202733] cfg80211: loaded regulatory.db is malformed or signature is missing/invalid
[   10.210187] systemd[1]: Finished systemd-fsck@dev-disk-by\x2duuid-3aa6b54e\x2d5712\x2d449e\x2da5f9\x2d58b51a11fd76.service - File System Check on /dev/disk/by-uuid/3aa6b54e-5712-449e-a5f9-58b51a11fd76.
[  OK  ] Finished systemd-fsck@dev-6b54e-5712-449e-a5f9-58b51a11fd76.

[   10.214865] systemd[1]: boot.mount: Directory /boot to mount over is not empty, mounting anyway.
[   10.223864] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac4356-sdio for chip BCM4356/2
[   10.227932] brcmfmac mmc0:0001:1: Direct firmware load for brcm/brcmfmac4356-sdio.leez,p710.bin failed with error -2
[   10.257952] systemd[1]: Mounting boot.mount - /boot...
       Mounting boot.mount - /boot...

[   10.278050] EXT4-fs (mmcblk1p1): mounted filesystem with ordered data mode. Quota mode: none.
[   10.283891] dw-apb-uart ff180000.serial: failed to request DMA
[   10.286634] systemd[1]: Mounted boot.mount - /boot.
[  OK  ] Mounted boot.mount - /boot.

[   10.288321] systemd[1]: Reached target local-fs.target - Local File Systems.
[  OK  ] Reached target local-fs.target - Local File Systems.

[   10.296234] systemd[1]: Starting armbian-zram-config.service - Armbian ZRAM config...
       Starting armbian-zram-confrvice - Armbian ZRAM config...

[   10.305101] systemd[1]: Starting console-setup.service - Set console font and keymap...
       Starting console-setup.serm - Set console font and keymap...

[   10.312396] systemd[1]: Starting networking.service - Raise network interfaces...
       Starting networking.service - Raise network interfaces...

[   10.324296] systemd[1]: Starting plymouth-read-write.service - Tell Plymouth To Write Out Runtime Data...
       Starting plymouth-read-wrimouth To Write Out Runtime Data...

[   10.349555] systemd[1]: Starting systemd-binfmt.service - Set Up Additional Binary Formats...
       Starting systemd-binfmt.seet Up Additional Binary Formats...

[   10.358333] systemd[1]: Starting systemd-machine-id-commit.service - Commit a transient machine-id on disk...
       Starting systemd-machine-i a transient machine-id on disk...

[   10.361978] systemd[1]: Finished plymouth-read-write.service - Tell Plymouth To Write Out Runtime Data.
[  OK  ] Finished plymouth-read-wrilymouth To Write Out Runtime Data.

[   10.367472] systemd[1]: Received SIGRTMIN+20 from PID 345 (plymouthd).
[   10.371056] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4356/2 wl0: May  2 2019 20:27:41 version 7.35.349.77 (r714255 CY) FWID 01-5ec6f857
[   10.382428] systemd[1]: proc-sys-fs-binfmt_misc.automount: Got automount request for /proc/sys/fs/binfmt_misc, triggered by 600 (systemd-binfmt)
[   10.394042] systemd[1]: Mounting proc-sys-fs-binfmt_misc.mount - Arbitrary Executable File Formats File System...
       Mounting proc-sys-fs-binfmutable File Formats File System...

[   10.397960] usbcore: registered new interface driver brcmfmac
[   10.438133] btsdio: probe of mmc0:0001:3 failed with error -110
[   10.456507] systemd[1]: Mounted proc-sys-fs-binfmt_misc.mount - Arbitrary Executable File Formats File System.
[  OK  ] Mounted proc-sys-fs-binfmtecutable File Formats File System.

[   10.470264] systemd[1]: Finished systemd-binfmt.service - Set Up Additional Binary Formats.
[  OK  ] Finished systemd-binfmt.se Set Up Additional Binary Formats.

[   10.524255] Bluetooth: hci0: BCM: chip id 101
[   10.526928] Bluetooth: hci0: BCM: features 0x2f
[   10.550525] Bluetooth: hci0: BCM4354A2
[   10.550887] Bluetooth: hci0: BCM4356A2 (001.003.015) build 0000
[   10.560840] Bluetooth: hci0: BCM4356A2 'brcm/BCM4356A2.hcd' Patch
[   10.644323] systemd[1]: etc-machine\x2did.mount: Deactivated successfully.
[   10.647305] systemd[1]: Finished systemd-machine-id-commit.service - Commit a transient machine-id on disk.
[  OK  ] Finished systemd-machine-iit a transient machine-id on disk.

[   10.740026] zram: Added device: zram0
[   10.740978] zram: Added device: zram1
[   10.741624] zram: Added device: zram2
[   10.952831] zram0: detected capacity change from 0 to 3961424
[   11.017535] Adding 1980708k swap on /dev/zram0.  Priority:5 extents:1 across:1980708k SSFS
[   11.135652] systemd[1]: Finished networking.service - Raise network interfaces.
[  OK  ] Finished networking.service - Raise network interfaces.

[   11.192613] zram1: detected capacity change from 0 to 102400
[   11.210917] systemd[1]: Listening on systemd-rfkill.socket - Load/Save RF Kill Switch Status /dev/rfkill Watch.
[  OK  ] Listening on systemd-rfkill Switch Status /dev/rfkill Watch.

[   11.248481] systemd[1]: Starting systemd-rfkill.service - Load/Save RF Kill Switch Status...
[   11.250890] systemd[1]: Finished armbian-zram-config.service - Armbian ZRAM config.
       Starting systemd-rfkill.seLoad/Save RF Kill Switch Status...

[  OK  ] Finished armbian-zram-confservice - Armbian ZRAM config.

[   11.270544] systemd[1]: Reached target bluetooth.target - Bluetooth Support.
[  OK  ] Reached target bluetooth.target - Bluetooth Support.

[   11.277005] systemd[1]: Starting armbian-ramlog.service - Armbian memory supported logging...
       Starting armbian-ramlog.sermbian memory supported logging...

[   11.313289] systemd[1]: Started systemd-rfkill.service - Load/Save RF Kill Switch Status.
[  OK  ] Started systemd-rfkill.ser- Load/Save RF Kill Switch Status.

[   11.403189] EXT4-fs (zram1): mounted filesystem without journal. Quota mode: none.
[   11.444982] systemd[1]: systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch was skipped because of an unmet condition check (ConditionPathExists=!/run/plymouth/pid).
[   11.447094] systemd[1]: sys-kernel-tracing.mount - Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing).
[   11.476519] systemd[1]: Starting modprobe@dm_mod.service - Load Kernel Module dm_mod...
       Starting modprobe@dm_mod.s[0m - Load Kernel Module dm_mod...

[   11.483043] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
       Starting modprobe@efi_psto- Load Kernel Module efi_pstore...

[   11.488958] systemd[1]: Starting modprobe@loop.service - Load Kernel Module loop...
       Starting modprobe@loop.sere - Load Kernel Module loop...

[   11.492014] systemd[1]: modprobe@dm_mod.service: Deactivated successfully.
[   11.493601] systemd[1]: Finished modprobe@dm_mod.service - Load Kernel Module dm_mod.
[  OK  ] Finished modprobe@dm_mod.se - Load Kernel Module dm_mod.

[   11.504599] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully.
[   11.506123] systemd[1]: Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[  OK  ] Finished modprobe@efi_pstom - Load Kernel Module efi_pstore.

[   11.508758] systemd[1]: modprobe@loop.service: Deactivated successfully.
[   11.510160] systemd[1]: Finished modprobe@loop.service - Load Kernel Module loop.
[  OK  ] Finished modprobe@loop.service - Load Kernel Module loop.

[   11.512178] systemd[1]: systemd-pstore.service - Platform Persistent Storage Archival was skipped because of an unmet condition check (ConditionDirectoryNotEmpty=/sys/fs/pstore).
[   11.513989] systemd[1]: systemd-repart.service - Repartition Root Disk was skipped because no trigger condition checks were met.
[   12.984188] systemd[1]: Finished console-setup.service - Set console font and keymap.
[  OK  ] Finished console-setup.ser[0m - Set console font and keymap.

[   13.264819] systemd[1]: Finished armbian-ramlog.service - Armbian memory supported logging.
[  OK  ] Finished armbian-ramlog.se Armbian memory supported logging.

[   13.301187] systemd[1]: Starting systemd-journald.service - Journal Service...
       Starting systemd-journald.service - Journal Service...

[   13.476103] systemd[1]: Started systemd-journald.service - Journal Service.
[  OK  ] Started systemd-journald.service - Journal Service.

       Starting systemd-journal-fh Journal to Persistent Storage...

[   13.559213] systemd-journald[1056]: Received client request to flush runtime journal.
[  OK  ] Finished systemd-journal-fush Journal to Persistent Storage.

       Starting systemd-tmpfiles- Volatile Files and Directories...

[  OK  ] Finished systemd-tmpfiles-te Volatile Files and Directories.

       Mounting run-rpc_pipefs.mount - RPC Pipe File System...

[  OK  ] Started haveged.servicemon based on the HAVEGE algorithm.

       Starting rpcbind.service - RPC bind portmap service...

       Starting systemd-resolved.e - Network Name Resolution...

       Starting systemd-update-utrd System Boot/Shutdown in UTMP...

[   13.853052] RPC: Registered named UNIX socket transport module.
[   13.853623] RPC: Registered udp transport module.
[   13.854043] RPC: Registered tcp transport module.
[   13.854461] RPC: Registered tcp NFSv4.1 backchannel transport module.
[  OK  ] Mounted run-rpc_pipefs.mount - RPC Pipe File System.

[  OK  ] Reached target rpc_pipefs.target.

[  OK  ] Reached target nfs-client.target - NFS client services.

[  OK  ] Finished systemd-update-utcord System Boot/Shutdown in UTMP.

[  OK  ] Started rpcbind.service - RPC bind portmap service.

[  OK  ] Reached target remote-fs-peparation for Remote File Systems.

[  OK  ] Reached target remote-fs.target - Remote File Systems.

[  OK  ] Reached target rpcbind.target - RPC Port Mapper.

[  OK  ] Started systemd-resolved.sice - Network Name Resolution.

[  OK  ] Reached target nss-lookup.m - Host and Network Name Lookups.

[  OK  ] Reached target sysinit.target - System Initialization.

[  OK  ] Started systemd-tmpfiles-c Cleanup of Temporary Directories.

[  OK  ] Listening on dbus.socket- D-Bus System Message Bus Socket.

[  OK  ] Reached target sockets.target - Socket Units.

       Starting armbian-hardware-m - Armbian hardware monitoring...

       Starting armbian-hardware-- Armbian hardware optimization...

       Starting armbian-resize-fi[0m - Armbian filesystem resize...

[  OK  ] Finished armbian-hardware-[0m - Armbian hardware monitoring.

[  OK  ] Finished armbian-hardware-m - Armbian hardware optimization.

[   15.012461] rd 0-5: Disabling EAS, schedutil is mandatory
[  OK  ] Finished armbian-resize-fie - Armbian filesystem resize.

[  OK  ] Reached target basic.target - Basic System.

       Starting alsa-restore.serv- Save/Restore Sound Card State...

[  OK  ] Started armbian-firstrun.sice - Armbian first run tasks.

[  OK  ] Created slice system-getty.slice - Slice /system/getty.

[  OK  ] Started cron.service -kground program processing daemon.

       Starting dbus.service - D-Bus System Message Bus...

       Starting e2scrub_reap.serve ext4 Metadata Check Snapshots...

       Starting loadcpufreq.servieeded to enable cpufreq scaling...

       Starting rng-tools-debian.LSB: rng-tools (Debian variant)...

       Starting rsyslog.service - System Logging Service...

       Starting sysstat.service - Resets System Activity Logs...

       Starting systemd-logind.seice - User Login Management...

[  OK  ] Finished alsa-restore.servm - Save/Restore Sound Card State.

[  OK  ] Reached target sound.target - Sound Card.

[  OK  ] Finished e2scrub_reap.servine ext4 Metadata Check Snapshots.

[  OK  ] Started rng-tools-debian.s- LSB: rng-tools (Debian variant).

[  OK  ] Started rsyslog.service - System Logging Service.

[  OK  ] Finished sysstat.service - Resets System Activity Logs.

[  OK  ] Started loadcpufreq.servic needed to enable cpufreq scaling.

       Starting cpufrequtils.serv: set CPUFreq kernel parameters...

[  OK  ] Started dbus.service - D-Bus System Message Bus.

[   15.845555] systemd-journald[1056]: Received client request to relinquish /var/log/journal/2840cd985cce42e9a133fd68c9c2403e access.
[  OK  ] Started systemd-logind.service - User Login Management.

       Starting NetworkManager.service - Network Manager...

       Starting wpa_supplicant.service - WPA supplicant...

[  OK  ] Started cpufrequtils.serviSB: set CPUFreq kernel parameters.

       Starting sysfsutils.servic variables from /etc/sysfs.conf...

[  OK  ] Started wpa_supplicant.service - WPA supplicant.

[  OK  ] Started sysfsutils.servicefs variables from /etc/sysfs.conf.

[  OK  ] Started NetworkManager.service - Network Manager.

[  OK  ] Reached target network.target - Network.

[  OK  ] Reached target network-online.target - Network is Online.

       Starting chrony.service - chrony, an NTP client/server...

       Starting openvpn.service - OpenVPN service...

       Starting rc-local.servicem - /etc/rc.local Compatibility...

       Starting rpc-statd-notify.- Notify NFS peers of a restart...

       Starting ssh.service - OpenBSD Secure Shell server...

       Starting systemd-user-sessvice - Permit User Sessions...

[  OK  ] Started unattended-upgrade0m - Unattended Upgrades Shutdown.

[  OK  ] Started vnstat.service - vnStat network traffic monitor.

[  OK  ] Finished openvpn.service - OpenVPN service.

       Starting systemd-hostnamed.service - Hostname Service...

[  OK  ] Finished systemd-user-sesservice - Permit User Sessions.

[  OK  ] Started systemd-hostnamed.service - Hostname Service.

[   17.401168] Bluetooth: hci0: BCM: features 0x2f
[   17.425094] Bluetooth: hci0: BCM4356 37.4MHz AMPAK AP6356-0055
[   17.425651] Bluetooth: hci0: BCM4356A2 (001.003.015) build 0266
[  OK  ] Started rpc-statd-notify.sm - Notify NFS peers of a restart.

[  OK  ] Started chrony.service - chrony, an NTP client/server.

[  OK  ] Reached target time-sync.tet - System Time Synchronized.

[  OK  ] Started apt-daily.timer - Daily apt download activities.

[  OK  ] Started apt-daily-upgrade. apt upgrade and clean activities.

[  OK  ] Started dpkg-db-backup.tim Daily dpkg database backup timer.

[  OK  ] Started e2scrub_all.timeretadata Check for All Filesystems.

[  OK  ] Started fstrim.timer - Discard unused blocks once a week.

[  OK  ] Started logrotate.timer - Daily rotation of log files.

[  OK  ] Started man-db.timer - Daily man-db regeneration.

[  OK  ] Started sysstat-collect.ti accounting tool every 10 minutes.

[  OK  ] Started sysstat-summary.tiof yesterday's process accounting.

[  OK  ] Reached target timers.target - Timer Units.

       Starting armbian-led-stateervice - Armbian leds state...

[  OK  ] Started ssh.service - OpenBSD Secure Shell server.

[  OK  ] Finished armbian-led-state.service - Armbian leds state.

       Starting NetworkManager-dinager Script Dispatcher Service...

[  OK  ] Started NetworkManager-disManager Script Dispatcher Service.

[   18.904949] rk_gmac-dwmac fe300000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0
[   18.908103] rk_gmac-dwmac fe300000.ethernet eth0: PHY [stmmac-0:00] driver [RTL8211E Gigabit Ethernet] (irq=POLL)
[   20.423856] rk_gmac-dwmac fe300000.ethernet eth0: No Safety Features support found
[   20.424576] rk_gmac-dwmac fe300000.ethernet eth0: PTP not supported by HW
[   20.425734] rk_gmac-dwmac fe300000.ethernet eth0: configuring for phy/rgmii link mode
       Stopping ssh.service - OpenBSD Secure Shell server...

[  OK  ] Stopped ssh.service - OpenBSD Secure Shell server.

       Starting ssh.service - OpenBSD Secure Shell server...

[  OK  ] Started ssh.service - OpenBSD Secure Shell server.

[   24.295335] rc.local[1913]: Restarting ssh (via systemctl): ssh.service.

[   25.712776] rc.local[1930]: irq name:eth0, irq:72, affinity: 8

[   25.713156] rc.local[1930]: irq name:xhci-hcd:usb5, irq:76, affinity: 4

[   25.713497] rc.local[1930]: irq name:xhci-hcd:usb7, irq:77, affinity: 4

[   25.713801] rc.local[1930]: Set the rps cpu mask of eth0 to 0x33

[  OK  ] Started rc-local.service - /etc/rc.local Compatibility.

       Starting plymouth-quit-wai until boot process finishes up...

       Starting plymouth-quit.ser Terminate Plymouth Boot Screen...

[   26.593201] rk_gmac-dwmac fe300000.ethernet eth0: Link is Up - 100Mbps/Full - flow control rx/tx
[   26.594130] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready


armbian login: root (automatic login)


                                       _   _  _
_ __   __ _ _ __   ___  _ __   ___     | |_| || |
| '_ \ / _` | '_ \ / _ \| '_ \ / __|____| __| || |_
| | | | (_| | | | | (_) | |_) | (_|_____| |_|__   _|
|_| |_|\__,_|_| |_|\___/| .__/ \___|     \__|  |_|
                      |_|
Welcome to Armbian-unofficial 24.2.0-trunk Bookworm with Linux 6.1.73-ophub

System load:   50%           Up time:       0 min
Memory usage:  4% of 3.78G  IP:       192.168.1.215
CPU temp:      35°C           Usage of /:    64% of 2.4G
RX today:      n/a

Last login: Sat Jan 13 19:19:31 CST 2024 on tty1

Waiting for system to finish booting ...
[   34.676083] systemd-journald[1056]: Received client request to flush runtime journal.
[   34.896481] systemd-journald[1056]: Received client request to relinquish /var/log/journal/2840cd985cce42e9a133fd68c9c2403e access.
[   49.791326] EXT4-fs (mmcblk1p2): resizing filesystem from 655104 to 7647739 blocks
[   50.702454] EXT4-fs (mmcblk1p2): resized filesystem to 7647739
/usr/lib/armbian/armbian-firstlogin: line 337: /sys/class/graphics/fb0/virtual_size: No such file or directory
Welcome to Armbian-unofficial!

Documentation: https://docs.armbian.com/ | Community support: https://community.armbian.com/

IP address: 192.168.1.215

Create root password: *********
Repeat root password: *********

Support status: community support (looking for a dedicated maintainer)

Choose default system command shell:

1) bash
2) zsh
1

Shell: BASH

Creating a new user account. Press <Ctrl-C> to abort

Please provide a username (eg. your first name): ^C

Disabling user account creation procedure


root@armbian:~#  exit

logout


Armbian-unofficial 24.2.0-trunk Bookworm ttyS2

armbian login: root

Password:
____  _  __     _   _                                 _____ _  _
|  _ \| |/ /    | \ | | __ _ _ __   ___  _ __   ___   |_   _| || |
| |_) | ' /_____|  \| |/ _` | '_ \ / _ \| '_ \ / __|____| | | || |_
|  _ <| . \_____| |\  | (_| | | | | (_) | |_) | (_|_____| | |__   _|
|_| \_\_|\_\    |_| \_|\__,_|_| |_|\___/| .__/ \___|    |_|    |_|
                                      |_|
Welcome to Armbian OS 24.2.0 Bookworm with Linux 6.1.73-ophub

System load:   4%           Up time:       3 min
Memory usage:  5% of 3.78G  IP:       192.168.1.215
CPU temp:      35°C           Usage of /:    6% of 29G
RX today:      4.3 KiB

Last login: Sat Jan 13 19:19:31 CST 2024 on ttyS2
root@armbian:~# cat /etc/ophub-release

PLATFORM='rockchip'
VERSION_CODEID='debian'
VERSION_CODENAME='bookworm'
MODEL_ID='r419'
MODEL_NAME='NanoPC-T4'
SOC='rk3399'
FDTFILE='rk3399-leez-p710.dtb'
FAMILY='rk3399'
BOARD='nanopc-t4'
KERNEL_REPO='ophub/kernel'
KERNEL_TAGS='6.1.y'
KERNEL_VERSION='6.1.73'
KERNEL_BACKUP='yes'
BOOT_CONF='armbianEnv.txt'
ROOTFS_TYPE='ext4'
DISK_TYPE='usb'
AMPART_STATUS='no'
MLUBOOT_STATUS='no'
MAINLINE_UBOOT='/usr/lib/u-boot/u-boot.itb'
BOOTLOADER_IMG='/usr/lib/u-boot/idbloader.img'
TRUST_IMG='/usr/lib/'
BUILD_REPOSITORY='github.com/armbian/build'
REBUILD_REPOSITORY='github.com/ophub/amlogic-s9xxx-armbian'
CONTRIBUTORS='o5rhaxzc'
BUILDER_NAME='ophub'
PACKAGED_DATE='2024-01-17'
root@armbian:~# free -m

             total        used        free      shared  buff/cache   available
Mem:            3868         255        3512           6         179        3612
Swap:           1934           0        1934
root@armbian:~# df -h

Filesystem      Size  Used Avail Use% Mounted on
udev            1.8G     0  1.8G   0% /dev
tmpfs           387M  6.4M  381M   2% /run
/dev/mmcblk1p2   29G  1.6G   28G   6% /
tmpfs           1.9G     0  1.9G   0% /dev/shm
tmpfs           5.0M  8.0K  5.0M   1% /run/lock
tmpfs           1.9G  8.0K  1.9G   1% /tmp
/dev/mmcblk1p1  223M   81M  138M  37% /boot
/dev/zram1       47M  744K   43M   2% /var/log
tmpfs           387M     0  387M   0% /run/user/0
root@armbian:~# dmesg

[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[    0.000000] Linux version 6.1.73-ophub (root@fv-az1249-168) (aarch64-none-linux-gnu-gcc (Arm GNU Toolchain 13.2.rel1 (Build arm-13.7)) 13.2.1 20231009, GNU ld (Arm GNU Toolchain 13.2.rel1 (Build arm-13.7)) 2.41.0.20231009) #1 SMP Wed Jan 17 20:43:41 EST 2024
[    0.000000] Machine model: Leez RK3399 P710
[    0.000000] efi: UEFI not found.
[    0.000000] Zone ranges:
[    0.000000]   DMA      [mem 0x0000000000200000-0x00000000f7ffffff]
[    0.000000]   DMA32    empty
[    0.000000]   Normal   empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000000200000-0x00000000f7ffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000000200000-0x00000000f7ffffff]
[    0.000000] On node 0, zone DMA: 512 pages in unavailable ranges
[    0.000000] cma: Reserved 256 MiB at 0x00000000e0e00000
[    0.000000] psci: probing for conduit method from DT.
[    0.000000] psci: PSCIv1.0 detected in firmware.
[    0.000000] psci: Using standard PSCI v0.2 function IDs
[    0.000000] psci: MIGRATE_INFO_TYPE not supported.
[    0.000000] psci: SMC Calling Convention v1.0
[    0.000000] percpu: Embedded 19 pages/cpu s38056 r8192 d31576 u77824
[    0.000000] pcpu-alloc: s38056 r8192 d31576 u77824 alloc=19*4096
[    0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [0] 4 [0] 5
[    0.000000] Detected VIPT I-cache on CPU0
[    0.000000] CPU features: detected: GIC system register CPU interface
[    0.000000] CPU features: detected: ARM erratum 845719
[    0.000000] alternatives: applying boot alternatives
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 999432
[    0.000000] Kernel command line: root=UUID=4a15c401-315f-4e1d-9666-7bdcc76a1c95 rootwait rootfstype=ext4 splash=verbose console=ttyS2,1500000 console=tty1 consoleblank=0 loglevel=1 ubootpart=ed9e0ab0-6ec4-4c57-81df-004720d1a3a4 usb-storage.quirks=  net.ifnames=0 max_loop=128 cgroup_enable=cpuset cgroup_memory=1 cgroup_enable=memory swapaccount=1
[    0.000000] The swapaccount= commandline option is deprecated. Please report your usecase to linux-mm@kvack.org if you depend on this functionality.
[    0.000000] Unknown kernel command line parameters "splash=verbose ubootpart=ed9e0ab0-6ec4-4c57-81df-004720d1a3a4 cgroup_enable=memory cgroup_memory=1", will be passed to user space.
[    0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[    0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] Memory: 3677920K/4061184K available (16960K kernel code, 2920K rwdata, 8192K rodata, 4864K init, 892K bss, 121120K reserved, 262144K cma-reserved)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=6, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] rcu: RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=6.
[    0.000000] Tracing variant of Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=6
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[    0.000000] GICv3: 256 SPIs implemented
[    0.000000] GICv3: 0 Extended SPIs implemented
[    0.000000] Root IRQ handler: gic_handle_irq
[    0.000000] GICv3: GICv3 features: 16 PPIs
[    0.000000] GICv3: CPU0: found redistributor 0 region 0:0x00000000fef00000
[    0.000000] ITS [mem 0xfee20000-0xfee3ffff]
[    0.000000] ITS@0x00000000fee20000: allocated 65536 Devices @480000 (flat, esz 8, psz 64K, shr 0)
[    0.000000] ITS: using cache flushing for cmd queue
[    0.000000] GICv3: using LPI property table @0x0000000000440000
[    0.000000] GIC: using cache flushing for LPI property table
[    0.000000] GICv3: CPU0: using allocated LPI pending table @0x0000000000450000
[    0.000000] GICv3: GIC: PPI partition interrupt-partition-0[0] { /cpus/cpu@0[0] /cpus/cpu@1[1] /cpus/cpu@2[2] /cpus/cpu@3[3] }
[    0.000000] GICv3: GIC: PPI partition interrupt-partition-1[1] { /cpus/cpu@100[4] /cpus/cpu@101[5] }
[    0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[    0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    0.000001] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    0.001950] Console: colour dummy device 80x25
[    0.002021] printk: console [tty1] enabled
[    0.002073] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[    0.002092] pid_max: default: 32768 minimum: 301
[    0.002460] LSM: Security Framework initializing
[    0.002641] SELinux:  Initializing.
[    0.003144] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    0.003178] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    0.005352] cacheinfo: Unable to detect cache hierarchy for CPU 0
[    0.006276] cblist_init_generic: Setting adjustable number of callback queues.
[    0.006285] cblist_init_generic: Setting shift to 3 and lim to 1.
[    0.006542] rcu: Hierarchical SRCU implementation.
[    0.006549] rcu: Max phase no-delay instances is 1000.
[    0.008586] Platform MSI: interrupt-controller@fee20000 domain created
[    0.009021] PCI/MSI: /interrupt-controller@fee00000/interrupt-controller@fee20000 domain created
[    0.009725] EFI services will not be available.
[    0.010348] smp: Bringing up secondary CPUs ...
[    0.011065] Detected VIPT I-cache on CPU1
[    0.011191] cacheinfo: Unable to detect cache hierarchy for CPU 1
[    0.011207] GICv3: CPU1: found redistributor 1 region 0:0x00000000fef20000
[    0.011229] GICv3: CPU1: using allocated LPI pending table @0x0000000000460000
[    0.011283] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[    0.012078] Detected VIPT I-cache on CPU2
[    0.012184] cacheinfo: Unable to detect cache hierarchy for CPU 2
[    0.012198] GICv3: CPU2: found redistributor 2 region 0:0x00000000fef40000
[    0.012215] GICv3: CPU2: using allocated LPI pending table @0x0000000000470000
[    0.012251] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[    0.013006] Detected VIPT I-cache on CPU3
[    0.013115] cacheinfo: Unable to detect cache hierarchy for CPU 3
[    0.013129] GICv3: CPU3: found redistributor 3 region 0:0x00000000fef60000
[    0.013146] GICv3: CPU3: using allocated LPI pending table @0x0000000000500000
[    0.013179] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[    0.013918] CPU features: detected: Spectre-v2
[    0.013929] CPU features: detected: Spectre-v4
[    0.013934] CPU features: detected: Spectre-BHB
[    0.013941] CPU features: detected: ARM erratum 1742098
[    0.013948] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[    0.013953] Detected PIPT I-cache on CPU4
[    0.014066] cacheinfo: Unable to detect cache hierarchy for CPU 4
[    0.014080] GICv3: CPU4: found redistributor 100 region 0:0x00000000fef80000
[    0.014098] GICv3: CPU4: using allocated LPI pending table @0x0000000000510000
[    0.014137] CPU4: Booted secondary processor 0x0000000100 [0x410fd082]
[    0.014868] Detected PIPT I-cache on CPU5
[    0.014967] cacheinfo: Unable to detect cache hierarchy for CPU 5
[    0.014980] GICv3: CPU5: found redistributor 101 region 0:0x00000000fefa0000
[    0.014997] GICv3: CPU5: using allocated LPI pending table @0x0000000000520000
[    0.015027] CPU5: Booted secondary processor 0x0000000101 [0x410fd082]
[    0.015121] smp: Brought up 1 node, 6 CPUs
[    0.015159] SMP: Total of 6 processors activated.
[    0.015167] CPU features: detected: 32-bit EL0 Support
[    0.015173] CPU features: detected: 32-bit EL1 Support
[    0.015181] CPU features: detected: CRC32 instructions
[    0.015293] CPU: All CPU(s) started at EL2
[    0.015309] alternatives: applying system-wide alternatives
[    0.018899] devtmpfs: initialized
[    0.034261] Registered cp15_barrier emulation handler
[    0.034281] Registered setend emulation handler
[    0.034420] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.034439] futex hash table entries: 2048 (order: 5, 131072 bytes, linear)
[    0.039393] prandom: seed boundary self test passed
[    0.041208] prandom: 100 self tests passed
[    0.041250] pinctrl core: initialized pinctrl subsystem
[    0.041801] DMI not present or invalid.
[    0.042396] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.044210] DMA: preallocated 2048 KiB GFP_KERNEL pool for atomic allocations
[    0.045023] DMA: preallocated 2048 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[    0.045684] DMA: preallocated 2048 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[    0.045735] audit: initializing netlink subsys (disabled)
[    0.045947] audit: type=2000 audit(0.044:1): state=initialized audit_enabled=0 res=1
[    0.047150] thermal_sys: Registered thermal governor 'step_wise'
[    0.047212] cpuidle: using governor ladder
[    0.047399] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    0.047555] ASID allocator initialised with 65536 entries
[    0.047678] Serial: AMBA PL011 UART driver
[    0.067839] platform fe330000.mmc: Fixed dependency cycle(s) with /syscon@ff770000/phy@f780
[    0.072316] platform ff940000.hdmi: Fixed dependency cycle(s) with /vop@ff8f0000/port/endpoint@2
[    0.072343] platform ff940000.hdmi: Fixed dependency cycle(s) with /vop@ff900000/port/endpoint@2
[    0.079599] rockchip-gpio ff720000.gpio: probed /pinctrl/gpio@ff720000
[    0.080233] rockchip-gpio ff730000.gpio: probed /pinctrl/gpio@ff730000
[    0.080830] rockchip-gpio ff780000.gpio: probed /pinctrl/gpio@ff780000
[    0.081454] rockchip-gpio ff788000.gpio: probed /pinctrl/gpio@ff788000
[    0.081978] rockchip-gpio ff790000.gpio: probed /pinctrl/gpio@ff790000
[    0.096689] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
[    0.096700] HugeTLB: 0 KiB vmemmap can be freed for a 1.00 GiB page
[    0.096709] HugeTLB: registered 32.0 MiB page size, pre-allocated 0 pages
[    0.096715] HugeTLB: 0 KiB vmemmap can be freed for a 32.0 MiB page
[    0.096723] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
[    0.096728] HugeTLB: 0 KiB vmemmap can be freed for a 2.00 MiB page
[    0.096735] HugeTLB: registered 64.0 KiB page size, pre-allocated 0 pages
[    0.096741] HugeTLB: 0 KiB vmemmap can be freed for a 64.0 KiB page
[    0.097943] cryptd: max_cpu_qlen set to 1000
[    0.164761] raid6: neonx8   gen()  1771 MB/s
[    0.232862] raid6: neonx4   gen()  1718 MB/s
[    0.300979] raid6: neonx2   gen()  1426 MB/s
[    0.369081] raid6: neonx1   gen()  1041 MB/s
[    0.437182] raid6: int64x8  gen()  1010 MB/s
[    0.505288] raid6: int64x4  gen()   977 MB/s
[    0.573392] raid6: int64x2  gen()   944 MB/s
[    0.641523] raid6: int64x1  gen()   734 MB/s
[    0.641529] raid6: using algorithm neonx8 gen() 1771 MB/s
[    0.709606] raid6: .... xor() 1298 MB/s, rmw enabled
[    0.709612] raid6: using neon recovery algorithm
[    0.709818] ACPI: Interpreter disabled.
[    0.711554] iommu: Default domain type: Translated
[    0.711564] iommu: DMA domain TLB invalidation policy: strict mode
[    0.712036] SCSI subsystem initialized
[    0.712207] libata version 3.00 loaded.
[    0.712436] usbcore: registered new interface driver usbfs
[    0.712478] usbcore: registered new interface driver hub
[    0.712513] usbcore: registered new device driver usb
[    0.712980] mc: Linux media interface: v0.10
[    0.713064] videodev: Linux video capture interface: v2.00
[    0.713357] EDAC MC: Ver: 3.0.0
[    0.714433] Advanced Linux Sound Architecture Driver Initialized.
[    0.715229] vgaarb: loaded
[    0.715682] clocksource: Switched to clocksource arch_sys_counter
[    0.716045] VFS: Disk quotas dquot_6.6.0
[    0.716121] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[    0.716267] FS-Cache: Loaded
[    0.716470] pnp: PnP ACPI: disabled
[    0.726153] NET: Registered PF_INET protocol family
[    0.726426] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[    0.731107] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[    0.731171] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.731232] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    0.731582] TCP bind hash table entries: 32768 (order: 8, 1048576 bytes, linear)
[    0.732871] TCP: Hash tables configured (established 32768 bind 32768)
[    0.733175] MPTCP token hash table entries: 4096 (order: 4, 98304 bytes, linear)
[    0.733304] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    0.733442] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    0.733831] NET: Registered PF_UNIX/PF_LOCAL protocol family
[    0.733880] NET: Registered PF_XDP protocol family
[    0.733894] PCI: CLS 0 bytes, default 64
[    0.734368] Trying to unpack rootfs image as initramfs...
[    0.740544] hw perfevents: enabled with armv8_cortex_a53 PMU driver, 7 counters available
[    0.741751] hw perfevents: enabled with armv8_cortex_a72 PMU driver, 7 counters available
[    0.742416] kvm [1]: IPA Size Limit: 40 bits
[    0.744165] kvm [1]: vgic-v2@fff20000
[    0.744195] kvm [1]: GIC system register CPU interface enabled
[    0.744593] kvm [1]: vgic interrupt IRQ18
[    0.745825] kvm [1]: Hyp mode initialized successfully
[    0.748224] Initialise system trusted keyrings
[    0.748467] workingset: timestamp_bits=46 max_order=20 bucket_order=0
[    0.755903] zbud: loaded
[    0.757886] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.758502] fuse: init (API version 7.37)
[    0.759107] SGI XFS with ACLs, security attributes, quota, no debug enabled
[    0.827662] NET: Registered PF_ALG protocol family
[    0.827714] xor: measuring software checksum speed
[    0.831095]    8regs           :  2917 MB/sec
[    0.834250]    32regs          :  3137 MB/sec
[    0.838069]    arm64_neon      :  2592 MB/sec
[    0.838078] xor: using function: 32regs (3137 MB/sec)
[    0.838111] Key type asymmetric registered
[    0.838118] Asymmetric key parser 'x509' registered
[    0.838220] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 245)
[    0.838375] io scheduler mq-deadline registered
[    0.838383] io scheduler kyber registered
[    0.838546] io scheduler bfq registered
[    0.935309] dma-pl330 ff6d0000.dma-controller: Loaded driver for PL330 DMAC-241330
[    0.935327] dma-pl330 ff6d0000.dma-controller: DBUFF-32x8bytes Num_Chans-6 Num_Peri-12 Num_Events-12
[    0.936779] dma-pl330 ff6e0000.dma-controller: Loaded driver for PL330 DMAC-241330
[    0.936793] dma-pl330 ff6e0000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-20 Num_Events-16
[    0.940993] Serial: 8250/16550 driver, 5 ports, IRQ sharing enabled
[    0.943159] ff180000.serial: ttyS0 at MMIO 0xff180000 (irq = 37, base_baud = 1500000) is a 16550A
[    0.943301] serial serial0: tty port ttyS0 registered
[    0.944065] ff1a0000.serial: ttyS2 at MMIO 0xff1a0000 (irq = 38, base_baud = 1500000) is a 16550A
[    0.944383] printk: console [ttyS2] enabled
[    0.945434] Serial: AMBA driver
[    0.947177] random: crng init done
[    0.951398] rockchip-vop ff8f0000.vop: Adding to iommu group 2
[    0.952005] rockchip-vop ff900000.vop: Adding to iommu group 3
[    0.957901] rockchip-drm display-subsystem: bound ff8f0000.vop (ops vop_component_ops)
[    0.958008] [drm] unsupported AFBC format[3231564e]
[    0.959075] rockchip-drm display-subsystem: bound ff900000.vop (ops vop_component_ops)
[    0.959168] dwhdmi-rockchip ff940000.hdmi: supply avdd-0v9 not found, using dummy regulator
[    0.959301] dwhdmi-rockchip ff940000.hdmi: supply avdd-1v8 not found, using dummy regulator
[    0.963069] cacheinfo: Unable to detect cache hierarchy for CPU 0
[    0.965363] brd: module loaded
[    1.028424] loop: module loaded
[    1.036856] usbcore: registered new interface driver cdc_wdm
[    1.036904] usbcore: registered new interface driver usb-storage
[    1.036983] usbcore: registered new interface driver usbserial_generic
[    1.037006] usbserial: USB Serial support registered for generic
[    1.037041] usbcore: registered new interface driver ch341
[    1.037061] usbserial: USB Serial support registered for ch341-uart
[    1.037091] usbcore: registered new interface driver cp210x
[    1.037110] usbserial: USB Serial support registered for cp210x
[    1.037139] usbcore: registered new interface driver ftdi_sio
[    1.037159] usbserial: USB Serial support registered for FTDI USB Serial Device
[    1.037194] usbcore: registered new interface driver garmin_gps
[    1.037214] usbserial: USB Serial support registered for Garmin GPS usb/tty
[    1.037248] usbcore: registered new interface driver ipw
[    1.037269] usbserial: USB Serial support registered for IPWireless converter
[    1.037302] usbcore: registered new interface driver opticon
[    1.037322] usbserial: USB Serial support registered for opticon
[    1.037352] usbcore: registered new interface driver pl2303
[    1.037371] usbserial: USB Serial support registered for pl2303
[    1.037401] usbcore: registered new interface driver qcaux
[    1.037420] usbserial: USB Serial support registered for qcaux
[    1.037456] usbcore: registered new interface driver qcserial
[    1.037477] usbserial: USB Serial support registered for Qualcomm USB modem
[    1.037509] usbcore: registered new interface driver symbolserial
[    1.037529] usbserial: USB Serial support registered for symbol
[    1.038078] mousedev: PS/2 mouse device common for all mice
[    1.039193] SPI driver rmi4_spi has no spi_device_id for syna,rmi4-spi
[    1.040018] i2c_dev: i2c /dev entries driver
[    1.042880] dw-apb-uart ff180000.serial: Failed to create device link (0x180) with 0-001b
[    1.042958] i2c 0-001b: Fixed dependency cycle(s) with /i2c@ff3c0000/pmic@1b/regulators/DCDC_REG4
[    1.043890] fan53555-regulator 0-0040: FAN53555 Option[8] Rev[1] Detected!
[    1.046004] fan53555-regulator 0-0041: FAN53555 Option[8] Rev[1] Detected!
[    1.055193] sdhci: Secure Digital Host Controller Interface driver
[    1.055203] sdhci: Copyright(c) Pierre Ossman
[    1.055209] Synopsys Designware Multimedia Card Interface Driver
[    1.056570] sdhci-pltfm: SDHCI platform and OF driver helper
[    1.056637] dwmmc_rockchip fe310000.mmc: IDMAC supports 32-bit address mode.
[    1.056680] dwmmc_rockchip fe310000.mmc: Using internal DMA controller.
[    1.056698] dwmmc_rockchip fe310000.mmc: Version ID is 270a
[    1.056773] dwmmc_rockchip fe310000.mmc: DW MMC controller at irq 51,32 bit host data width,256 deep fifo
[    1.056878] dwmmc_rockchip fe320000.mmc: IDMAC supports 32-bit address mode.
[    1.056911] dwmmc_rockchip fe320000.mmc: Using internal DMA controller.
[    1.056928] dwmmc_rockchip fe320000.mmc: Version ID is 270a
[    1.056981] dwmmc_rockchip fe320000.mmc: DW MMC controller at irq 52,32 bit host data width,256 deep fifo
[    1.057145] dwmmc_rockchip fe320000.mmc: Got CD GPIO
[    1.058294] ledtrig-cpu: registered to indicate activity on CPUs
[    1.060182] hid: raw HID events driver (C) Jiri Kosina
[    1.060279] usbcore: registered new interface driver usbhid
[    1.060287] usbhid: USB HID core driver
[    1.067892] mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
[    1.072284] Initializing XFRM netlink socket
[    1.072807] NET: Registered PF_INET6 protocol family
[    1.117659] mmc_host mmc1: Bus speed (slot 0) = 50000000Hz (slot req 50000000Hz, actual 50000000HZ div = 0)
[    1.117789] mmc1: new high speed SDHC card at address 0001
[    1.118831] mmcblk1: mmc1:0001 ASTC 29.4 GiB
[    1.127860]  mmcblk1: p1 p2
[    1.876372] Freeing initrd memory: 16492K
[    1.946015] Segment Routing with IPv6
[    1.946027] RPL Segment Routing with IPv6
[    1.946069] In-situ OAM (IOAM) with IPv6
[    1.946231] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[    1.947221] NET: Registered PF_PACKET protocol family
[    1.947239] NET: Registered PF_KEY protocol family
[    1.947580] 8021q: 802.1Q VLAN Support v1.8
[    1.948482] registered taskstats version 1
[    1.948522] Loading compiled-in X.509 certificates
[    1.956768] zswap: loaded using pool zstd/zbud
[    1.958045] Key type .fscrypt registered
[    1.958059] Key type fscrypt-provisioning registered
[    1.959461] Btrfs loaded, crc32c=crc32c-generic, zoned=no, fsverity=no
[    2.405857] alg: No test for 842 (842-scomp)
[    2.406406] alg: No test for 842 (842-generic)
[    3.460648] rockchip-drm display-subsystem: bound ff8f0000.vop (ops vop_component_ops)
[    3.461904] rockchip-drm display-subsystem: bound ff900000.vop (ops vop_component_ops)
[    3.462016] dwhdmi-rockchip ff940000.hdmi: supply avdd-0v9 not found, using dummy regulator
[    3.462249] dwhdmi-rockchip ff940000.hdmi: supply avdd-1v8 not found, using dummy regulator
[    3.462464] dwhdmi-rockchip ff940000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)
[    3.464330] rockchip-drm display-subsystem: bound ff940000.hdmi (ops dw_hdmi_rockchip_ops)
[    3.465580] [drm] Initialized rockchip 1.0.0 20140818 for display-subsystem on minor 0
[    3.465705] rockchip-drm display-subsystem: [drm] Cannot find any crtc or sizes
[    3.465855] rockchip-drm display-subsystem: [drm] Cannot find any crtc or sizes
[    3.465886] rockchip-drm display-subsystem: [drm] Cannot find any crtc or sizes
[    3.468979] rk808 0-001b: chip id: 0x0
[    3.470440] ehci-platform fe380000.usb: EHCI Host Controller
[    3.470832] ehci-platform fe380000.usb: new USB bus registered, assigned bus number 1
[    3.470957] ehci-platform fe380000.usb: irq 59, io mem 0xfe380000
[    3.471259] ehci-platform fe3c0000.usb: EHCI Host Controller
[    3.471605] ehci-platform fe3c0000.usb: new USB bus registered, assigned bus number 2
[    3.471801] ehci-platform fe3c0000.usb: irq 61, io mem 0xfe3c0000
[    3.476553] rk808-regulator rk808-regulator: there is no dvs0 gpio
[    3.476599] rk808-regulator rk808-regulator: there is no dvs1 gpio
[    3.481467] vcc1v8_hdmi: Bringing 3000000uV into 1800000-1800000uV
[    3.483916] ehci-platform fe380000.usb: USB 2.0 started, EHCI 1.00
[    3.484513] vccio_sd: Bringing 3300000uV into 3000000-3000000uV
[    3.485908] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
[    3.485940] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    3.485955] usb usb1: Product: EHCI Host Controller
[    3.485967] usb usb1: Manufacturer: Linux 6.1.73-ophub ehci_hcd
[    3.485979] usb usb1: SerialNumber: fe380000.usb
[    3.487012] hub 1-0:1.0: USB hub found
[    3.487266] hub 1-0:1.0: 1 port detected
[    3.490053] vcc0v9_hdmi: Bringing 1800000uV into 900000-900000uV
[    3.499827] ehci-platform fe3c0000.usb: USB 2.0 started, EHCI 1.00
[    3.500667] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
[    3.500691] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    3.500705] usb usb2: Product: EHCI Host Controller
[    3.500717] usb usb2: Manufacturer: Linux 6.1.73-ophub ehci_hcd
[    3.500729] usb usb2: SerialNumber: fe3c0000.usb
[    3.500751] rk808-rtc rk808-rtc: registered as rtc0
[    3.501465] hub 2-0:1.0: USB hub found
[    3.501486] rk808-rtc rk808-rtc: setting system clock to 2013-01-18T08:50:17 UTC (1358499017)
[    3.501582] hub 2-0:1.0: 1 port detected
[    3.501891] dw-apb-uart ff180000.serial: Failed to create device link (0x180) with 0-001b
[    3.505773] cpu cpu0: EM: created perf domain
[    3.507217] cpu cpu4: EM: OPP:408000 is inefficient
[    3.507521] cpu cpu4: EM: created perf domain
[    3.510865] dwmmc_rockchip fe310000.mmc: IDMAC supports 32-bit address mode.
[    3.510899] dwmmc_rockchip fe310000.mmc: Using internal DMA controller.
[    3.510911] dwmmc_rockchip fe310000.mmc: Version ID is 270a
[    3.510937] dwmmc_rockchip fe310000.mmc: DW MMC controller at irq 51,32 bit host data width,256 deep fifo
[    3.511059] dwmmc_rockchip fe310000.mmc: allocated mmc-pwrseq
[    3.511070] mmc_host mmc0: card is non-removable.
[    3.513864] rk_gmac-dwmac fe300000.ethernet: IRQ eth_wake_irq not found
[    3.513880] rk_gmac-dwmac fe300000.ethernet: IRQ eth_lpi not found
[    3.513987] rk_gmac-dwmac fe300000.ethernet: PTP uses main clock
[    3.514150] rk_gmac-dwmac fe300000.ethernet: clock input or output? (input).
[    3.514160] rk_gmac-dwmac fe300000.ethernet: TX delay(0x28).
[    3.514170] rk_gmac-dwmac fe300000.ethernet: RX delay(0x11).
[    3.514183] rk_gmac-dwmac fe300000.ethernet: integrated PHY? (no).
[    3.514216] rk_gmac-dwmac fe300000.ethernet: clock input from PHY
[    3.519232] rk_gmac-dwmac fe300000.ethernet: init for RGMII
[    3.519605] rk_gmac-dwmac fe300000.ethernet: User ID: 0x10, Synopsys ID: 0x35
[    3.519620] rk_gmac-dwmac fe300000.ethernet: DWMAC1000
[    3.519628] rk_gmac-dwmac fe300000.ethernet: DMA HW capability register supported
[    3.519635] rk_gmac-dwmac fe300000.ethernet: RX Checksum Offload Engine supported
[    3.519642] rk_gmac-dwmac fe300000.ethernet: COE Type 2
[    3.519648] rk_gmac-dwmac fe300000.ethernet: TX Checksum insertion supported
[    3.519655] rk_gmac-dwmac fe300000.ethernet: Wake-Up On Lan supported
[    3.519661] rk_gmac-dwmac fe300000.ethernet: Normal descriptors
[    3.519680] rk_gmac-dwmac fe300000.ethernet: Ring mode enabled
[    3.519687] rk_gmac-dwmac fe300000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[    3.524894] mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
[    3.638811] RTL8211E Gigabit Ethernet stmmac-0:00: attached PHY driver (mii_bus:phy_addr=stmmac-0:00, irq=POLL)
[    3.638851] RTL8211E Gigabit Ethernet stmmac-0:01: attached PHY driver (mii_bus:phy_addr=stmmac-0:01, irq=POLL)
[    3.643414] ALSA device list:
[    3.643426]   No soundcards found.
[    3.645469] Freeing unused kernel memory: 4864K
[    3.668124] Run /init as init process
[    3.668141]   with arguments:
[    3.668149]     /init
[    3.668158]   with environment:
[    3.668164]     HOME=/
[    3.668170]     TERM=linux
[    3.668176]     splash=verbose
[    3.668182]     ubootpart=ed9e0ab0-6ec4-4c57-81df-004720d1a3a4
[    3.668188]     cgroup_enable=memory
[    3.668195]     cgroup_memory=1
[    3.673337] mmc_host mmc0: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0)
[    3.681362] fbcon: Taking over console
[    3.834101] dwmmc_rockchip fe310000.mmc: Successfully tuned phase to 189
[    3.849994] mmc0: new ultra high speed SDR104 SDIO card at address 0001
[    4.095370] ohci-platform fe3a0000.usb: Generic Platform OHCI controller
[    4.104840] ohci-platform fe3a0000.usb: new USB bus registered, assigned bus number 3
[    4.104981] ohci-platform fe3a0000.usb: irq 73, io mem 0xfe3a0000
[    4.109762] ohci-platform fe3e0000.usb: Generic Platform OHCI controller
[    4.118375] ohci-platform fe3e0000.usb: new USB bus registered, assigned bus number 4
[    4.118521] ohci-platform fe3e0000.usb: irq 74, io mem 0xfe3e0000
[    4.126589] mmc2: CQHCI version 5.10
[    4.155664] Registered IR keymap rc-cec
[    4.155720] mmc2: SDHCI controller on fe330000.mmc [fe330000.mmc] using ADMA
[    4.157341] rc rc0: dw_hdmi as /devices/platform/ff940000.hdmi/rc/rc0
[    4.168069] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 6.01
[    4.168080] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.168084] usb usb3: Product: Generic Platform OHCI controller
[    4.168089] usb usb3: Manufacturer: Linux 6.1.73-ophub ohci_hcd
[    4.168092] usb usb3: SerialNumber: fe3a0000.usb
[    4.170903] input: dw_hdmi as /devices/platform/ff940000.hdmi/rc/rc0/input0
[    4.178108] hub 3-0:1.0: USB hub found
[    4.178178] hub 3-0:1.0: 1 port detected
[    4.215267] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 6.01
[    4.215279] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.215284] usb usb4: Product: Generic Platform OHCI controller
[    4.215288] usb usb4: Manufacturer: Linux 6.1.73-ophub ohci_hcd
[    4.215292] usb usb4: SerialNumber: fe3e0000.usb
[    4.219283] mmc2: Command Queue Engine enabled
[    4.219306] mmc2: new HS400 Enhanced strobe MMC card at address 0001
[    4.221861] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[    4.222252] mmcblk2: mmc2:0001 AJTD4R 14.6 GiB
[    4.226610] hub 4-0:1.0: USB hub found
[    4.226809] hub 4-0:1.0: 1 port detected
[    4.247827]  mmcblk2: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14 p15 p16 p17 p18 p19
[    4.258750] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 5
[    4.258899] xhci-hcd xhci-hcd.4.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000000002010010
[    4.258929] xhci-hcd xhci-hcd.4.auto: irq 76, io mem 0xfe800000
[    4.259084] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[    4.271179] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 6
[    4.271213] xhci-hcd xhci-hcd.4.auto: Host supports USB 3.0 SuperSpeed
[    4.271344] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
[    4.271353] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.271360] usb usb5: Product: xHCI Host Controller
[    4.271365] usb usb5: Manufacturer: Linux 6.1.73-ophub xhci-hcd
[    4.271370] usb usb5: SerialNumber: xhci-hcd.4.auto
[    4.313291] hub 5-0:1.0: USB hub found
[    4.313356] hub 5-0:1.0: 1 port detected
[    4.319856] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[    4.319962] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.01
[    4.319973] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.319979] usb usb6: Product: xHCI Host Controller
[    4.319985] usb usb6: Manufacturer: Linux 6.1.73-ophub xhci-hcd
[    4.319990] usb usb6: SerialNumber: xhci-hcd.4.auto
[    4.325416] xhci-hcd xhci-hcd.5.auto: xHCI Host Controller
[    4.366558] hub 6-0:1.0: USB hub found
[    4.366624] hub 6-0:1.0: 1 port detected
[    4.372273] xhci-hcd xhci-hcd.5.auto: new USB bus registered, assigned bus number 7
[    4.372427] xhci-hcd xhci-hcd.5.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000000002010010
[    4.372481] xhci-hcd xhci-hcd.5.auto: irq 77, io mem 0xfe900000
[    4.372483] mmcblk2boot0: mmc2:0001 AJTD4R 4.00 MiB
[    4.372637] xhci-hcd xhci-hcd.5.auto: xHCI Host Controller
[    4.373095] xhci-hcd xhci-hcd.5.auto: new USB bus registered, assigned bus number 8
[    4.373118] xhci-hcd xhci-hcd.5.auto: Host supports USB 3.0 SuperSpeed
[    4.373241] usb usb7: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
[    4.373249] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.373256] usb usb7: Product: xHCI Host Controller
[    4.373262] usb usb7: Manufacturer: Linux 6.1.73-ophub xhci-hcd
[    4.373267] usb usb7: SerialNumber: xhci-hcd.5.auto
[    4.373486] mmcblk2boot1: mmc2:0001 AJTD4R 4.00 MiB
[    4.373906] hub 7-0:1.0: USB hub found
[    4.373933] hub 7-0:1.0: 1 port detected
[    4.374152] mmcblk2rpmb: mmc2:0001 AJTD4R 4.00 MiB, chardev (240:0)
[    4.374231] usb usb8: We don't know the algorithms for LPM for this host, disabling LPM.
[    4.374315] usb usb8: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.01
[    4.374323] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.374330] usb usb8: Product: xHCI Host Controller
[    4.374335] usb usb8: Manufacturer: Linux 6.1.73-ophub xhci-hcd
[    4.374340] usb usb8: SerialNumber: xhci-hcd.5.auto
[    4.377011] hub 8-0:1.0: USB hub found
[    4.377045] hub 8-0:1.0: 1 port detected
[    4.507972] usb 3-1: new full-speed USB device number 2 using ohci-platform
[    4.737102] usb 3-1: New USB device found, idVendor=4037, idProduct=2804, bcdDevice= 1.10
[    4.737125] usb 3-1: New USB device strings: Mfr=0, Product=1, SerialNumber=0
[    4.737137] usb 3-1: Product: 2.4G Composite Devic
[    4.744874] input: 2.4G Composite Devic as /devices/platform/fe3a0000.usb/usb3/3-1/3-1:1.0/0003:4037:2804.0001/input/input1
[    4.809352] hid-generic 0003:4037:2804.0001: input,hidraw0: USB HID v1.10 Keyboard [2.4G Composite Devic] on usb-fe3a0000.usb-1/input0
[    4.815704] input: 2.4G Composite Devic Mouse as /devices/platform/fe3a0000.usb/usb3/3-1/3-1:1.1/0003:4037:2804.0002/input/input2
[    4.816231] input: 2.4G Composite Devic Consumer Control as /devices/platform/fe3a0000.usb/usb3/3-1/3-1:1.1/0003:4037:2804.0002/input/input3
[    4.880693] input: 2.4G Composite Devic System Control as /devices/platform/fe3a0000.usb/usb3/3-1/3-1:1.1/0003:4037:2804.0002/input/input4
[    4.881795] hid-generic 0003:4037:2804.0002: input,hidraw1: USB HID v1.10 Mouse [2.4G Composite Devic] on usb-fe3a0000.usb-1/input1
[    4.978108] dw-apb-uart ff1a0000.serial: forbid DMA for kernel console
[    5.498721] EXT4-fs (mmcblk1p2): mounted filesystem with ordered data mode. Quota mode: none.
[    6.405306] systemd[1]: System time before build time, advancing clock.
[    6.589063] systemd[1]: systemd 252.19-1~deb12u1 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -BPF_FRAMEWORK -XKBCOMMON +UTMP +SYSVINIT default-hierarchy=unified)
[    6.589112] systemd[1]: Detected architecture arm64.
[    6.590729] systemd[1]: Detected first boot.
[    6.602617] systemd[1]: Hostname set to <armbian>.
[    6.610222] systemd[1]: Initializing machine ID from random generator.
[    8.350335] systemd[1]: Failed to populate /etc with preset unit settings, ignoring: Read-only file system
[    8.510801] systemd[1]: Queued start job for default target graphical.target.
[    8.542283] systemd[1]: Created slice system-modprobe.slice - Slice /system/modprobe.
[    8.543572] systemd[1]: Created slice system-serial\x2dgetty.slice - Slice /system/serial-getty.
[    8.544610] systemd[1]: Created slice system-systemd\x2dfsck.slice - Slice /system/systemd-fsck.
[    8.545260] systemd[1]: Created slice user.slice - User and Session Slice.
[    8.545499] systemd[1]: Started systemd-ask-password-wall.path - Forward Password Requests to Wall Directory Watch.
[    8.545990] systemd[1]: Set up automount proc-sys-fs-binfmt_misc.automount - Arbitrary Executable File Formats File System Automount Point.
[    8.546187] systemd[1]: Reached target integritysetup.target - Local Integrity Protected Volumes.
[    8.546366] systemd[1]: Reached target slices.target - Slice Units.
[    8.546916] systemd[1]: Reached target swap.target - Swaps.
[    8.547019] systemd[1]: Reached target time-set.target - System Time Set.
[    8.547181] systemd[1]: Reached target veritysetup.target - Local Verity Protected Volumes.
[    8.561581] systemd[1]: Listening on rpcbind.socket - RPCbind Server Activation Socket.
[    8.562179] systemd[1]: Listening on syslog.socket - Syslog Socket.
[    8.562552] systemd[1]: Listening on systemd-fsckd.socket - fsck to fsckd communication Socket.
[    8.562774] systemd[1]: Listening on systemd-initctl.socket - initctl Compatibility Named Pipe.
[    8.563792] systemd[1]: Listening on systemd-journald-audit.socket - Journal Audit Socket.
[    8.564188] systemd[1]: Listening on systemd-journald-dev-log.socket - Journal Socket (/dev/log).
[    8.564603] systemd[1]: Listening on systemd-journald.socket - Journal Socket.
[    8.569004] systemd[1]: Listening on systemd-udevd-control.socket - udev Control Socket.
[    8.569381] systemd[1]: Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
[    8.571935] systemd[1]: Mounting dev-hugepages.mount - Huge Pages File System...
[    8.575106] systemd[1]: Mounting dev-mqueue.mount - POSIX Message Queue File System...
[    8.578446] systemd[1]: Mounting sys-kernel-debug.mount - Kernel Debug File System...
[    8.578983] systemd[1]: sys-kernel-tracing.mount - Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing).
[    8.579460] systemd[1]: auth-rpcgss-module.service - Kernel Module supporting RPCSEC_GSS was skipped because of an unmet condition check (ConditionPathExists=/etc/krb5.keytab).
[    8.584367] systemd[1]: Starting fake-hwclock.service - Restore / save the current clock...
[    8.587623] systemd[1]: Starting keyboard-setup.service - Set the console keyboard layout...
[    8.590826] systemd[1]: Starting kmod-static-nodes.service - Create List of Static Device Nodes...
[    8.593986] systemd[1]: Starting modprobe@configfs.service - Load Kernel Module configfs...
[    8.597416] systemd[1]: Starting modprobe@dm_mod.service - Load Kernel Module dm_mod...
[    8.600650] systemd[1]: Starting modprobe@drm.service - Load Kernel Module drm...
[    8.603778] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
[    8.607169] systemd[1]: Starting modprobe@fuse.service - Load Kernel Module fuse...
[    8.610437] systemd[1]: Starting modprobe@loop.service - Load Kernel Module loop...
[    8.614012] systemd[1]: Starting systemd-fsck-root.service - File System Check on Root Device...
[    8.634310] systemd[1]: Starting systemd-modules-load.service - Load Kernel Modules...
[    8.637506] systemd[1]: Starting systemd-udev-trigger.service - Coldplug All udev Devices...
[    8.642034] systemd[1]: Mounted dev-hugepages.mount - Huge Pages File System.
[    8.642735] systemd[1]: Mounted dev-mqueue.mount - POSIX Message Queue File System.
[    8.643357] systemd[1]: Mounted sys-kernel-debug.mount - Kernel Debug File System.
[    8.644290] systemd[1]: Finished kmod-static-nodes.service - Create List of Static Device Nodes.
[    8.645593] systemd[1]: modprobe@configfs.service: Deactivated successfully.
[    8.645932] systemd[1]: Finished modprobe@configfs.service - Load Kernel Module configfs.
[    8.646698] systemd[1]: modprobe@drm.service: Deactivated successfully.
[    8.647031] systemd[1]: Finished modprobe@drm.service - Load Kernel Module drm.
[    8.647810] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully.
[    8.648162] systemd[1]: Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[    8.649011] systemd[1]: modprobe@fuse.service: Deactivated successfully.
[    8.649345] systemd[1]: Finished modprobe@fuse.service - Load Kernel Module fuse.
[    8.650150] systemd[1]: modprobe@loop.service: Deactivated successfully.
[    8.650483] systemd[1]: Finished modprobe@loop.service - Load Kernel Module loop.
[    8.653441] systemd[1]: Mounting sys-fs-fuse-connections.mount - FUSE Control File System...
[    8.656128] systemd[1]: Mounting sys-kernel-config.mount - Kernel Configuration File System...
[    8.657348] device-mapper: ioctl: 4.47.0-ioctl (2022-07-28) initialised: dm-devel@redhat.com
[    8.659212] systemd[1]: Started systemd-fsckd.service - File System Check Daemon to report status.
[    8.662844] systemd[1]: Finished fake-hwclock.service - Restore / save the current clock.
[    8.665600] systemd[1]: modprobe@dm_mod.service: Deactivated successfully.
[    8.665926] systemd[1]: Finished modprobe@dm_mod.service - Load Kernel Module dm_mod.
[    8.666443] systemd[1]: Mounted sys-fs-fuse-connections.mount - FUSE Control File System.
[    8.667083] systemd[1]: Mounted sys-kernel-config.mount - Kernel Configuration File System.
[    8.668052] systemd[1]: systemd-repart.service - Repartition Root Disk was skipped because no trigger condition checks were met.
[    8.693294] systemd[1]: Finished systemd-modules-load.service - Load Kernel Modules.
[    8.732477] systemd[1]: Starting systemd-sysctl.service - Apply Kernel Variables...
[    8.855572] systemd[1]: Finished keyboard-setup.service - Set the console keyboard layout.
[    8.876456] systemd[1]: Finished systemd-sysctl.service - Apply Kernel Variables.
[    8.888529] systemd[1]: Finished systemd-fsck-root.service - File System Check on Root Device.
[    8.908557] systemd[1]: Starting systemd-remount-fs.service - Remount Root and Kernel File Systems...
[    8.951638] EXT4-fs (mmcblk1p2): re-mounted. Quota mode: none.
[    8.955920] systemd[1]: Finished systemd-remount-fs.service - Remount Root and Kernel File Systems.
[    8.957426] systemd[1]: systemd-pstore.service - Platform Persistent Storage Archival was skipped because of an unmet condition check (ConditionDirectoryNotEmpty=/sys/fs/pstore).
[    8.980591] systemd[1]: Starting systemd-random-seed.service - Load/Save Random Seed...
[    8.985982] systemd[1]: Starting systemd-sysusers.service - Create System Users...
[    9.094572] systemd[1]: Finished systemd-random-seed.service - Load/Save Random Seed.
[    9.098628] systemd[1]: Finished systemd-udev-trigger.service - Coldplug All udev Devices.
[    9.101199] systemd[1]: Reached target first-boot-complete.target - First Boot Complete.
[    9.137239] systemd[1]: Starting ifupdown-pre.service - Helper to synchronize boot up for ifupdown...
[    9.140895] systemd[1]: Finished systemd-sysusers.service - Create System Users.
[    9.148076] systemd[1]: Starting systemd-tmpfiles-setup-dev.service - Create Static Device Nodes in /dev...
[    9.160541] systemd[1]: Finished ifupdown-pre.service - Helper to synchronize boot up for ifupdown.
[    9.224213] systemd[1]: Finished systemd-tmpfiles-setup-dev.service - Create Static Device Nodes in /dev.
[    9.227860] systemd[1]: Reached target local-fs-pre.target - Preparation for Local File Systems.
[    9.260881] systemd[1]: Starting systemd-udevd.service - Rule-based Manager for Device Events and Files...
[    9.513648] systemd[1]: Started systemd-udevd.service - Rule-based Manager for Device Events and Files.
[    9.548312] systemd[1]: Starting plymouth-start.service - Show Plymouth Boot Screen...
[    9.670832] systemd[1]: Started plymouth-start.service - Show Plymouth Boot Screen.
[    9.840789] systemd[1]: Found device dev-ttyS2.device - /dev/ttyS2.
[    9.870036] systemd[1]: Found device dev-disk-by\x2duuid-3aa6b54e\x2d5712\x2d449e\x2da5f9\x2d58b51a11fd76.device - /dev/disk/by-uuid/3aa6b54e-5712-449e-a5f9-58b51a11fd76.
[    9.882976] systemd[1]: systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch was skipped because of an unmet condition check (ConditionPathExists=!/run/plymouth/pid).
[    9.884924] systemd[1]: Started systemd-ask-password-plymouth.path - Forward Password Requests to Plymouth Directory Watch.
[    9.886064] systemd[1]: Reached target cryptsetup.target - Local Encrypted Volumes.
[    9.886806] systemd[1]: Reached target paths.target - Path Units.
[    9.928194] systemd[1]: Mounting tmp.mount - /tmp...
[    9.931663] systemd[1]: Starting systemd-fsck@dev-disk-by\x2duuid-3aa6b54e\x2d5712\x2d449e\x2da5f9\x2d58b51a11fd76.service - File System Check on /dev/disk/by-uuid/3aa6b54e-5712-449e-a5f9-58b51a11fd76...
[    9.939301] systemd[1]: Mounted tmp.mount - /tmp.
[    9.971642] Bluetooth: Core ver 2.22
[    9.971985] Bluetooth: Starting self testing
[    9.981122] dw_wdt ff848000.watchdog: No valid TOPs array specified
[   10.005909] Bluetooth: ECDH test passed in 32759 usecs
[   10.008635] Bluetooth: SMP test passed in 2165 usecs
[   10.015375] rockchip-rga ff680000.rga: HW Version: 0x03.02
[   10.017085] rockchip-rga ff680000.rga: Registered rockchip-rga as /dev/video0
[   10.035757] Bluetooth: Finished self testing
[   10.036207] NET: Registered PF_BLUETOOTH protocol family
[   10.036676] Bluetooth: HCI device and connection manager initialized
[   10.037239] Bluetooth: HCI socket layer initialized
[   10.037672] Bluetooth: L2CAP socket layer initialized
[   10.038133] Bluetooth: SCO socket layer initialized
[   10.041785] panfrost ff9a0000.gpu: clock rate = 500000000
[   10.043634] rockchip_vdec: module is from the staging directory, the quality is unknown, you have been warned.
[   10.045103] panfrost ff9a0000.gpu: mali-t860 id 0x860 major 0x2 minor 0x0 status 0x0
[   10.045815] panfrost ff9a0000.gpu: features: 00000000,00000407, issues: 00000000,24040400
[   10.046440] rkvdec ff660000.video-codec: Adding to iommu group 1
[   10.046544] panfrost ff9a0000.gpu: Features: L2:0x07120206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7
[   10.048143] panfrost ff9a0000.gpu: shader_present=0xf l2_present=0x1
[   10.076395] [drm] Initialized panfrost 1.2.0 20180908 for ff9a0000.gpu on minor 1
[   10.076887] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[   10.131387] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[   10.132695] cfg80211: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[   10.156848] Bluetooth: HCI UART driver ver 2.3
[   10.157275] Bluetooth: HCI UART protocol H4 registered
[   10.157736] Bluetooth: HCI UART protocol BCSP registered
[   10.158544] Bluetooth: HCI UART protocol LL registered
[   10.159024] Bluetooth: HCI UART protocol ATH3K registered
[   10.159594] Bluetooth: HCI UART protocol Three-wire (H5) registered
[   10.160559] Bluetooth: HCI UART protocol Intel registered
[   10.161889] hci_uart_bcm serial0-0: supply vbat not found, using dummy regulator
[   10.162779] hci_uart_bcm serial0-0: supply vddio not found, using dummy regulator
[   10.164095] Bluetooth: HCI UART protocol Broadcom registered
[   10.166120] Bluetooth: HCI UART protocol QCA registered
[   10.166609] Bluetooth: HCI UART protocol AG6XX registered
[   10.167225] Bluetooth: HCI UART protocol Marvell registered
[   10.202733] cfg80211: loaded regulatory.db is malformed or signature is missing/invalid
[   10.210187] systemd[1]: Finished systemd-fsck@dev-disk-by\x2duuid-3aa6b54e\x2d5712\x2d449e\x2da5f9\x2d58b51a11fd76.service - File System Check on /dev/disk/by-uuid/3aa6b54e-5712-449e-a5f9-58b51a11fd76.
[   10.211883] brcmfmac: F1 signature read @0x18000000=0x17224356
[   10.214865] systemd[1]: boot.mount: Directory /boot to mount over is not empty, mounting anyway.
[   10.223864] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac4356-sdio for chip BCM4356/2
[   10.227932] brcmfmac mmc0:0001:1: Direct firmware load for brcm/brcmfmac4356-sdio.leez,p710.bin failed with error -2
[   10.257952] systemd[1]: Mounting boot.mount - /boot...
[   10.278050] EXT4-fs (mmcblk1p1): mounted filesystem with ordered data mode. Quota mode: none.
[   10.283891] dw-apb-uart ff180000.serial: failed to request DMA
[   10.286634] systemd[1]: Mounted boot.mount - /boot.
[   10.288321] systemd[1]: Reached target local-fs.target - Local File Systems.
[   10.296234] systemd[1]: Starting armbian-zram-config.service - Armbian ZRAM config...
[   10.305101] systemd[1]: Starting console-setup.service - Set console font and keymap...
[   10.312396] systemd[1]: Starting networking.service - Raise network interfaces...
[   10.324296] systemd[1]: Starting plymouth-read-write.service - Tell Plymouth To Write Out Runtime Data...
[   10.349555] systemd[1]: Starting systemd-binfmt.service - Set Up Additional Binary Formats...
[   10.358333] systemd[1]: Starting systemd-machine-id-commit.service - Commit a transient machine-id on disk...
[   10.361978] systemd[1]: Finished plymouth-read-write.service - Tell Plymouth To Write Out Runtime Data.
[   10.367472] systemd[1]: Received SIGRTMIN+20 from PID 345 (plymouthd).
[   10.371056] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4356/2 wl0: May  2 2019 20:27:41 version 7.35.349.77 (r714255 CY) FWID 01-5ec6f857
[   10.382428] systemd[1]: proc-sys-fs-binfmt_misc.automount: Got automount request for /proc/sys/fs/binfmt_misc, triggered by 600 (systemd-binfmt)
[   10.394042] systemd[1]: Mounting proc-sys-fs-binfmt_misc.mount - Arbitrary Executable File Formats File System...
[   10.397960] usbcore: registered new interface driver brcmfmac
[   10.438133] btsdio: probe of mmc0:0001:3 failed with error -110
[   10.456507] systemd[1]: Mounted proc-sys-fs-binfmt_misc.mount - Arbitrary Executable File Formats File System.
[   10.470264] systemd[1]: Finished systemd-binfmt.service - Set Up Additional Binary Formats.
[   10.524255] Bluetooth: hci0: BCM: chip id 101
[   10.526928] Bluetooth: hci0: BCM: features 0x2f
[   10.550525] Bluetooth: hci0: BCM4354A2
[   10.550887] Bluetooth: hci0: BCM4356A2 (001.003.015) build 0000
[   10.560840] Bluetooth: hci0: BCM4356A2 'brcm/BCM4356A2.hcd' Patch
[   10.644323] systemd[1]: etc-machine\x2did.mount: Deactivated successfully.
[   10.647305] systemd[1]: Finished systemd-machine-id-commit.service - Commit a transient machine-id on disk.
[   10.740026] zram: Added device: zram0
[   10.740978] zram: Added device: zram1
[   10.741624] zram: Added device: zram2
[   10.952831] zram0: detected capacity change from 0 to 3961424
[   11.017535] Adding 1980708k swap on /dev/zram0.  Priority:5 extents:1 across:1980708k SSFS
[   11.135652] systemd[1]: Finished networking.service - Raise network interfaces.
[   11.192613] zram1: detected capacity change from 0 to 102400
[   11.210917] systemd[1]: Listening on systemd-rfkill.socket - Load/Save RF Kill Switch Status /dev/rfkill Watch.
[   11.248481] systemd[1]: Starting systemd-rfkill.service - Load/Save RF Kill Switch Status...
[   11.250890] systemd[1]: Finished armbian-zram-config.service - Armbian ZRAM config.
[   11.270544] systemd[1]: Reached target bluetooth.target - Bluetooth Support.
[   11.277005] systemd[1]: Starting armbian-ramlog.service - Armbian memory supported logging...
[   11.313289] systemd[1]: Started systemd-rfkill.service - Load/Save RF Kill Switch Status.
[   11.403189] EXT4-fs (zram1): mounted filesystem without journal. Quota mode: none.
[   11.444982] systemd[1]: systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch was skipped because of an unmet condition check (ConditionPathExists=!/run/plymouth/pid).
[   11.447094] systemd[1]: sys-kernel-tracing.mount - Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing).
[   11.476519] systemd[1]: Starting modprobe@dm_mod.service - Load Kernel Module dm_mod...
[   11.483043] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
[   11.488958] systemd[1]: Starting modprobe@loop.service - Load Kernel Module loop...
[   11.492014] systemd[1]: modprobe@dm_mod.service: Deactivated successfully.
[   11.493601] systemd[1]: Finished modprobe@dm_mod.service - Load Kernel Module dm_mod.
[   11.504599] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully.
[   11.506123] systemd[1]: Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[   11.508758] systemd[1]: modprobe@loop.service: Deactivated successfully.
[   11.510160] systemd[1]: Finished modprobe@loop.service - Load Kernel Module loop.
[   11.512178] systemd[1]: systemd-pstore.service - Platform Persistent Storage Archival was skipped because of an unmet condition check (ConditionDirectoryNotEmpty=/sys/fs/pstore).
[   11.513989] systemd[1]: systemd-repart.service - Repartition Root Disk was skipped because no trigger condition checks were met.
[   12.984188] systemd[1]: Finished console-setup.service - Set console font and keymap.
[   13.264819] systemd[1]: Finished armbian-ramlog.service - Armbian memory supported logging.
[   13.301187] systemd[1]: Starting systemd-journald.service - Journal Service...
[   13.476103] systemd[1]: Started systemd-journald.service - Journal Service.
[   13.559213] systemd-journald[1056]: Received client request to flush runtime journal.
[   13.853052] RPC: Registered named UNIX socket transport module.
[   13.853623] RPC: Registered udp transport module.
[   13.854043] RPC: Registered tcp transport module.
[   13.854461] RPC: Registered tcp NFSv4.1 backchannel transport module.
[   15.012461] rd 0-5: Disabling EAS, schedutil is mandatory
[   15.845555] systemd-journald[1056]: Received client request to relinquish /var/log/journal/2840cd985cce42e9a133fd68c9c2403e access.
[   17.401168] Bluetooth: hci0: BCM: features 0x2f
[   17.425094] Bluetooth: hci0: BCM4356 37.4MHz AMPAK AP6356-0055
[   17.425651] Bluetooth: hci0: BCM4356A2 (001.003.015) build 0266
[   18.904949] rk_gmac-dwmac fe300000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0
[   18.908103] rk_gmac-dwmac fe300000.ethernet eth0: PHY [stmmac-0:00] driver [RTL8211E Gigabit Ethernet] (irq=POLL)
[   20.423856] rk_gmac-dwmac fe300000.ethernet eth0: No Safety Features support found
[   20.424576] rk_gmac-dwmac fe300000.ethernet eth0: PTP not supported by HW
[   20.425734] rk_gmac-dwmac fe300000.ethernet eth0: configuring for phy/rgmii link mode
[   26.593201] rk_gmac-dwmac fe300000.ethernet eth0: Link is Up - 100Mbps/Full - flow control rx/tx
[   26.594130] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[   34.676083] systemd-journald[1056]: Received client request to flush runtime journal.
[   34.896481] systemd-journald[1056]: Received client request to relinquish /var/log/journal/2840cd985cce42e9a133fd68c9c2403e access.
[   49.791326] EXT4-fs (mmcblk1p2): resizing filesystem from 655104 to 7647739 blocks
[   50.702454] EXT4-fs (mmcblk1p2): resized filesystem to 7647739
root@armbian:~#

[o5rhaxzc]

现在重新开机又卡这里了

[ophub]

sd卡正常使用吧？

不支持你用的emmc助手。sd卡启动后，上传ing用dd命令写入emmc，看文档

[o5rhaxzc]

sd卡第一次启动从ttl看是能启动的 然后断电重启就不行了 接上hdmi看就停在上面那张截图的界面

[o5rhaxzc]

我从这里找到了balbes150的Armbian_23.04_Nanopct4_sid_current_6.2.16_xfce_desktop.img.xz用rufus写到sd卡后能正常启动

分流

[o5rhaxzc]

balbes150的不用按boot键就能直接跳过emmc从sd卡启动。poweroff关机开机都挺正常
从releases里下的要按boot键才能跳过emmc。而且关机也关不了，只能直接断电😟

[ophub]

我更新了一下配置，重新编译了，你到releases里下载刚刚编译的再试试。

[o5rhaxzc]

不行 ttl.log

ttl.log

DDR Version 1.25 20210517
In
Channel 0: LPDDR3, 933MHz
CS = 0
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
CS = 1
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
Bus Width=32 Col=10 Bank=8 Row=15/15 CS=2 Die Bus-Width=32 Size=2048MB
Channel 1: LPDDR3, 933MHz
CS = 0
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
CS = 1
MR0=0x58
MR1=0x58
MR2=0x58
MR3=0x58
MR4=0x2
MR5=0x1
MR6=0x6
MR7=0x0
MR8=0x1F
MR9=0x1F
MR10=0x1F
MR11=0x1F
MR12=0x1F
MR13=0x1F
MR14=0x1F
MR15=0x1F
MR16=0x1F
Bus Width=32 Col=10 Bank=8 Row=15/15 CS=2 Die Bus-Width=32 Size=2048MB
256B stride
ch 0 ddrconfig = 0x101, ddrsize = 0x2020
ch 1 ddrconfig = 0x101, ddrsize = 0x2020
pmugrf_os_reg[2] = 0x3AA0DAA0, stride = 0xD
OUT
Boot1 Release Time: May 29 2020 17:36:36, version: 1.26
CPUId = 0x0
ChipType = 0x10, 333
mmc: ERROR: sdhci_complete_adma: transfer error, stat 0x408000, adma error 0, retry 9996008, cmd 0x83a
mmc: ERROR: sdhci_complete_adma: transfer error, stat 0x408000, adma error 0, retry 9996006, cmd 0x83a
emmc reinit
mmc: ERROR: sdhci_complete_adma: transfer error, stat 0x408000, adma error 0, retry 9996007, cmd 0x83a
mmc: ERROR: sdhci_complete_adma: transfer error, stat 0x408000, adma error 0, retry 9996007, cmd 0x83a
emmc reinit
mmc: ERROR: sdhci_complete_adma: transfer error, stat 0x408000, adma error 0, retry 9996007, cmd 0x83a
mmc: ERROR: sdhci_complete_adma: transfer error, stat 0x408000, adma error 0, retry 9996008, cmd 0x83a
SdmmcInit=2 1
mmc0:cmd5,20
SdmmcInit=0 0
BootCapSize=0
UserCapSize=30146MB
FwPartOffset=2000 , 0
StorageInit ok = 121768
SecureMode = 0
SecureInit read PBA: 0x4
SecureInit read PBA: 0x404
SecureInit read PBA: 0x804
SecureInit read PBA: 0xc04
SecureInit read PBA: 0x1004
SecureInit read PBA: 0x1404
SecureInit read PBA: 0x1804
SecureInit read PBA: 0x1c04
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT part:  0, name:          primary, start:0x8000, size:0x7f800
GPT part:  1, name:          primary, start:0x88000, size:0x4ff800
no find partition:uboot.
Trust Addr:0x4000, 0x58334c42
No find bl30.bin
No find bl32.bin
Load uboot, ReadLba = 2000
Load OK, addr=0x200000, size=0xd8ac0
RunBL31 0x40000 @ 246440 us
NOTICE:  BL31: v1.3(release):845ee93
NOTICE:  BL31: Built : 15:51:11, Jul 22 2020
NOTICE:  BL31: Rockchip release version: v1.1
INFO:    GICv3 with legacy support detected. ARM GICV3 driver initialized in EL3
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    plat_rockchip_pmu_init(1196): pd status 3e
INFO:    BL31: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader, Booting device without OPTEE initialization. SMC`s destined for OPTEE will return SMC_UNK
ERROR:   Error initializing runtime service opteed_fast
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0x200000
INFO:    SPSR = 0x3c9


U-Boot 2022.04-armbian (May 29 2023 - 11:25:01 +0000)

SoC: Rockchip rk3399
Reset cause: POR
Model: FriendlyElec NanoPC-T4
DRAM:  3.9 GiB
PMIC:  RK808
Core:  280 devices, 26 uclasses, devicetree: separate
MMC:   mmc@fe310000: 3, mmc@fe320000: 1, mmc@fe330000: 0
Loading Environment from MMC... *** Warning - No block device, using default environment

In:    serial
Out:   serial
Err:   serial
Model: FriendlyElec NanoPC-T4
Net:   eth0: ethernet@fe300000
Hit any key to stop autoboot:  0
starting USB...
Bus usb@fe380000: USB EHCI 1.00
Bus usb@fe3c0000: USB EHCI 1.00
Bus usb@fe900000: Register 2000140 NbrPorts 2
Starting the controller
USB XHCI 1.10
scanning bus usb@fe380000 for devices... 1 USB Device(s) found
scanning bus usb@fe3c0000 for devices... 1 USB Device(s) found
scanning bus usb@fe900000 for devices... 1 USB Device(s) found
     scanning usb for storage devices... 0 Storage Device(s) found

Device 0: unknown device
switch to partitions #0, OK
mmc1 is current device
Scanning mmc 1:1...
Found U-Boot script /boot.scr
3252 bytes read in 5 ms (634.8 KiB/s)
## Executing script at 00500000
Boot script loaded from mmc 1
270 bytes read in 3 ms (87.9 KiB/s)
16889124 bytes read in 721 ms (22.3 MiB/s)
33858048 bytes read in 1442 ms (22.4 MiB/s)
80710 bytes read in 11 ms (7 MiB/s)
Failed to load '/dtb/rockchip/overlay/rk3399-fixup.scr'
Unknown command 'kaslrseed' - try 'help'
## Loading init Ramdisk from Legacy Image at 06000000 ...
 Image Name:   uInitrd
 Image Type:   AArch64 Linux RAMDisk Image (gzip compressed)
 Data Size:    16889060 Bytes = 16.1 MiB
 Load Address: 00000000
 Entry Point:  00000000
 Verifying Checksum ... OK
## Flattened Device Tree blob at 01f00000
 Booting using the fdt blob at 0x1f00000
 Loading Ramdisk to f0ef1000, end f1f0c4e4 ... OK
 Loading Device Tree to 00000000f0e74000, end 00000000f0ef0fff ... OK

Starting kernel ...

done.

Begin: Mounting root file system ... Begin: Running /scripts/local-top ... done.

Begin: Running /scripts/local-premount ... Scanning for Btrfs filesystems

done.

Begin: Waiting for root file system ... Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

Begin: Running /scripts/local-block ... done.

done.

Gave up waiting for root file system device.  Common problems:

- Boot args (cat /proc/cmdline)

 - Check rootdelay= (did the system wait long enough?)

- Missing modules (cat /proc/modules; ls /dev)

ALERT!  UUID=131df57e-5958-419c-87bc-3e7165bb726b does not exist.  Dropping to a shell!

[ophub]

USB/TF 都启动不了？

[o5rhaxzc]

写进sd卡的 启动不了
