Expand pipeline logs based on clicked graph node

[timbrown5]

Allow control to expand a set of nodes on load (whilst allowing the user to toggle nodes from then on).

This doesn't read the selected-node variable added by @timja - I assume that's easy, but couldn't see an easy way 😅 .

[timja]

Allow control to expand a set of nodes on load (whilst allowing the user to toggle nodes from then on).

This doesn't read the selected-node variable added by @timja - I assume that's easy, but couldn't see an easy way 😅 .

https://developer.mozilla.org/en-US/docs/Web/API/Location/search

if this was a functional component I would use the react hook useSearch but it's not for some reason.

IIRC search is case sensitive and it's not an object (need to call .get("")) so don't try access with . or blah["param"]

[timbrown5]

Thanks, it's now reading selected-node. There is an issue that selecting the first stage of a parallel block only expands the parent stage (not the child one). Selecting the second node works as expected (it expands the parent and child).
I believe this is because the ID of the node in the graph is that of the parent, and not the child (so the ID passed to the console view is that of the parent).

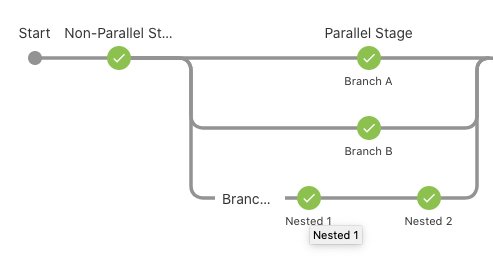

'Select > Nested 1' (incorrect - only 'Branch C' is expanded).

Results in:

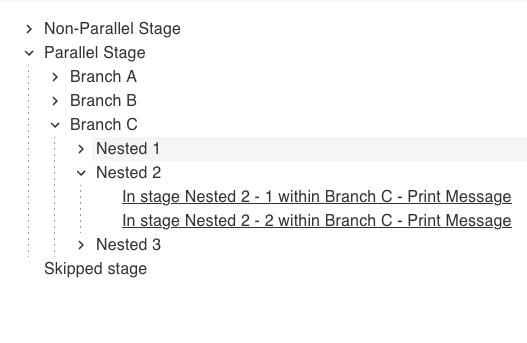

'Select > Nested 2' (correct, 'Branch C' and 'Nested 2' expanded).

Results in:

pipeline {
    agent any
    stages {
        stage('Non-Parallel Stage') {
            steps {
                echo 'This stage will be executed first.'
            }
        }
        stage('Parallel Stage') {
            failFast true
            parallel {
                stage('Branch A') {
                    steps {
                        echo ""
                        echo "On Branch A - 2"
                    }
                }
                stage('Branch B') {
                    steps {
                        echo "On Branch B - 1"
                        echo "On Branch B - 2"
                    }
                }
                stage('Branch C') {
                    stages {
                        stage('Nested 1') {
                            steps {
                                echo "In stage Nested 1 - 1 within Branch C"
                                echo "In stage Nested 1 - 2 within Branch C"
                            }
                        }
                        stage('Nested 2') {
                            steps {
                                echo "In stage Nested 2 - 1 within Branch C"
                                echo "In stage Nested 2 - 2 within Branch C"
                            }
                        }
                        stage('Nested 3') {
                            steps {
                                echo "In stage Nested 3 - 1 within Branch C"
                                echo "In stage Nested 3 - 2 within Branch C"
                            }
                        }
                    }
                }
            }
        }
        stage('Skipped stage') {
            when {
                branch 'master'
            }
            steps {
                echo 'This stage will be skipped.'
            }
        }
    }
}

[timbrown5]

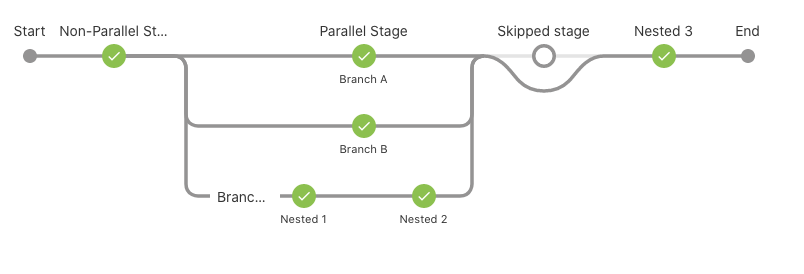

There is another issue (which I think is part of #18) that 'Nested 3' is not shown inside the 'Branch C' but as a sequential stage:

[timja]

tested locally, works except where you noted already.

🚢
