feat(python): _repr_png_ implementation for ImageBuf #4753

Glowies · 2025-05-14T00:21:35Z

Description

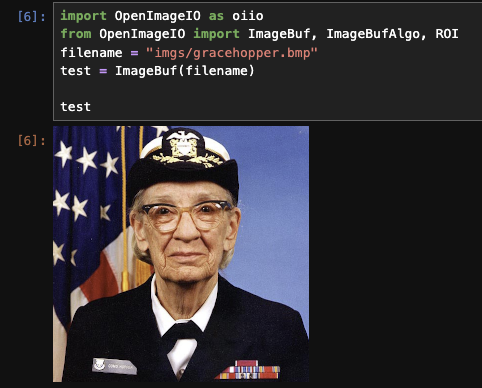

Adds the ability for ImageBuf objects to be displayed in Jupyter notebooks, as requested in #4680
Uses the IOVecOutput IOProxy to write the ImageBuf as a png into memory. Then, reads and returns that as a python bytes object.

Checklist:

I have read the contribution guidelines.
I have updated the documentation, if applicable. (Check if there is no
need to update the documentation, for example if this is a bug fix that
doesn't change the API.)
I have ensured that the change is tested somewhere in the testsuite
(adding new test cases if necessary).
If I added or modified a C++ API call, I have also amended the
corresponding Python bindings (and if altering ImageBufAlgo functions, also
exposed the new functionality as oiiotool options).
My code follows the prevailing code style of this project. If I haven't
already run clang-format before submitting, I definitely will look at the CI
test that runs clang-format and fix anything that it highlights as being
nonconforming.

Uses the IOVecOutput IOProxy to write the ImageBuf as a png into memory. Then, returns that as a python bytes object. Signed-off-by: glowies <[email protected]>

Signed-off-by: glowies <[email protected]>

linux-foundation-easycla · 2025-05-14T00:21:40Z

The committers listed above are authorized under a signed CLA.

✅ login: Glowies / name: Oktay Comu (96ecdeb, 3f73f79, 149b481, 60eef14, 0d4a987, ed2cc0c, 1a1c12d, 4382f3f)
✅ login: lgritz / name: Larry Gritz (84d20d0, 529ff59)

Signed-off-by: glowies <[email protected]>

zachlewis · 2025-05-15T15:47:05Z

This is super cool.

Just thinking aloud... if we're writing 8bit pngs for the sake of ephemeral preview, we should enable dithering as well.

Perhaps for a future PR, I'd love for this to automatically incorporate an ImageBufAlgo.ociodisplay transform just before, writing, too; but in order for that to work properly, the oiio:ColorSpace attribute would have to be set correctly, and the OCIO config itself would have to have "viewing rules" set up correctly, so output-referred and input-referred encodings select different default Views appropriate for preview -- otherwise, either scene-referred buffers will render appropriately and display-referred buffers will not; or vice versa. The same situation we have now.

It's not at all difficult to enable this functionality in OCIO; but it's not something that's enabled in the OCIO ACES configs, so we'd have to modify the built-in OCIO config that OIIO uses by default. (Which is something I'd recommend for OIIO in general, since OIIO doesn't necessarily share the same assumptions as the ACES configs do).

lgritz

Looks great! Simple, really cool feature that unlocks some new use cases, and it's also a great example of IOProxy to write image files to memory.

LGTM on the code!

I would like to ask for you to add something in the docs to the python chapter? This needs to be more discoverable by users. Also, is there any way to test this as part of the testsuite?

Glowies · 2025-05-15T18:59:37Z

Just thinking aloud... if we're writing 8bit pngs for the sake of ephemeral preview, we should enable dithering as well.

I'll look into adding dithering there! Not exactly sure how to do it, but I'm sure its somewhere in the docs 😀

And a follow-up issue for the Display/View transforms sounds like a great idea. Definitely sounds more involved than I thought!

Glowies · 2025-05-15T19:05:37Z

I would like to ask for you to add something in the docs to the python chapter? This needs to be more discoverable by users. Also, is there any way to test this as part of the testsuite?

I'll happily add to the docs! Where would be the most appropriate? I see there is a large Python Bindings page. Should it go in there or have a separate page dedicated to python notebooks?

For the testsuites, I think I can add some very simple tests to see if the correct bytes get output from repr_png and that it doesnt crash for 'dimensionless' images.

lgritz · 2025-05-15T19:05:49Z

This is a great start (modulo needing a mention in the docs). Don't feel like you need to keep piling on additional features into the first PR. I'm a big fan of small incremental PRs.

OIIO's png output already has a provision for dithering the output when converting from float to uint8 upon output. All you have to do (I think) is add the attribute "oiio:dither" (with a nonzero value) to the metadata, which you can also do through the ImageBuf interface.

lgritz · 2025-05-15T19:06:23Z

For the testsuites, I think I can add some very simple tests to see if the correct bytes get output from repr_png and that it doesnt crash for 'dimensionless' images.

Yes, exactly what I had in mind.

zachlewis · 2025-05-15T20:17:40Z

Don't feel like you need to keep piling on additional features into the first PR. I'm a big fan of small incremental PRs.

(Totally agree, feel free to ignore me!)

… 8bit png Signed-off-by: glowies <[email protected]>

Signed-off-by: glowies <[email protected]>

lgritz · 2025-05-15T23:18:43Z

The dither addition looks right.

Signed-off-by: glowies <[email protected]>

src/doc/pythonbindings.rst

Signed-off-by: glowies <[email protected]>

src/doc/pythonbindings.rst

Signed-off-by: glowies <[email protected]>

src/doc/pythonbindings.rst

Signed-off-by: Larry Gritz <[email protected]>

lgritz

After previewing the docs, I made two extremely small changes to for you, didn't change any text, just to fix it so the formatting was more like the surrounding section.

The rest all looks good to me, I think we are ready to merge this cool new feature!
