Overview

LogPy is a Python-based desktop application designed to analyze log files generated by telematics devices. The tool processes logs related to automotive and IoT systems, including CAN bus, GPS, network (TCP/MQTT), and sleep events. It provides both a command-line interface (CLI) and a graphical user interface (GUI) to enable users to filter, analyze, and summarize log data, producing detailed reports for debugging and diagnostics.

Notes

Notes.md contains my notes on Python's Multi-Threading, using PySide6 for GUI tools, creating pythnon package, and more.

Features

• Analyze network-related logs, including TCP connections, MQTT messages, and more.
• Perform sleep-related log analysis, such as tracking sleep cycles, wake events, etc.
• Use regular expressions for custom log parsing and analysis.
• User-friendly GUI for selecting log files, configuring analysis parameters, and viewing results.
• Toggle options to control the analysis process, such as ignoring case or disabling the progress bar.

Installation

To install LogPy, you can use the distributable package provided by the developer. Follow the instructions below to install LogPy on your system:

pip install logpy-1.2.1-py3-none-any.whl

Replace logpy-1.2.1-py3-none-any.whl with the correct filename of the package.

Usage

After installing LogPy, you can use it from the command line or as a gui application.

>> logpy --help

usage: logpy [-h] -l LOG_FILE [-o OUT_FILE] [-k [eg: FALCON, WATCHDOG, etc ...]] [-t [eg: telemetry ...]]
             [-r [REGEX ...]] [-c] [-dp] [--show-empty] [--all] [-m {network,sleep,gps,can}] [--tcp] [--mqtt]
             [--netswitching] [--pdpdeact] [--netregistration] [--ignition] [--sleepcycle] [--gps] [--can] [-v]

Log Analysis Command Line Tool.
For GUI based tool use: `logpy-gui`

options:
  -h, --help                    show this help message and exit
  -l LOG_FILE, --log-file LOG_FILE
                                Path to log file
  -o OUT_FILE, --out-file OUT_FILE
                                Path to output log file
  -k [eg: FALCON, WATCHDOG, etc ...], --keywords [eg: FALCON, WATCHDOG, etc ...]
                                Provide Additional Keywords to be added
  -t [eg: telemetry ...], --topics [eg: telemetry ...]
                                Specific topics to be looked up. (For MQTT Publish Msgs)
  -r [REGEX ...], --regex [REGEX ...]
                                Raw string command or regex expression
  -c, --ignore-case             Ignore Match Case
  -dp, --disable-progresslive   Disable tqdm progress bar
  --show-empty                  Show empty values as well
  --all                         Show all available analysis
  -m {network,sleep,gps,can}, --module {network,sleep,gps,can}
                                Choose the related module for log analysis
  -v, --version                 Show version

Network:
  Network related log analysis

  --tcp                         TCP related log analysis
  --mqtt                        MQTT related log analysis
  --netswitching                NETSWITCHING related log analysis
  --pdpdeact                    PDPDEACT related log analysis
  --netregistration             NETREGISTRATION related log analysis

Sleep:
  Sleep related log analysis

  --ignition                    IGNITION related log analysis
  --sleepcycle                  SLEEPCYCLE related log analysis

Gps:
  Gps related log analysis

  --gps                         GPS related log analysis

Can:
  Can related log analysis

  --can                         CAN related log analysis

This will display the available command-line options and usage instructions.

Examples

Here are some examples of how to use LogPy:

• Analyze network module related logs with TCP and MQTT analysis:

logpy -m network --tcp --mqtt -l /path/to/logfile.txt

• Perform sleep module related log analysis with wake and sleep cycle analysis:

logpy -m sleep -l /path/to/logfile.txt

• Search for additional keywords in log file

logpy -k FALCON WATCHDOG -l /path/to/logfile.txt

• Perform analysis of all modules:

logpy --all -l /path/to/logfile.txt

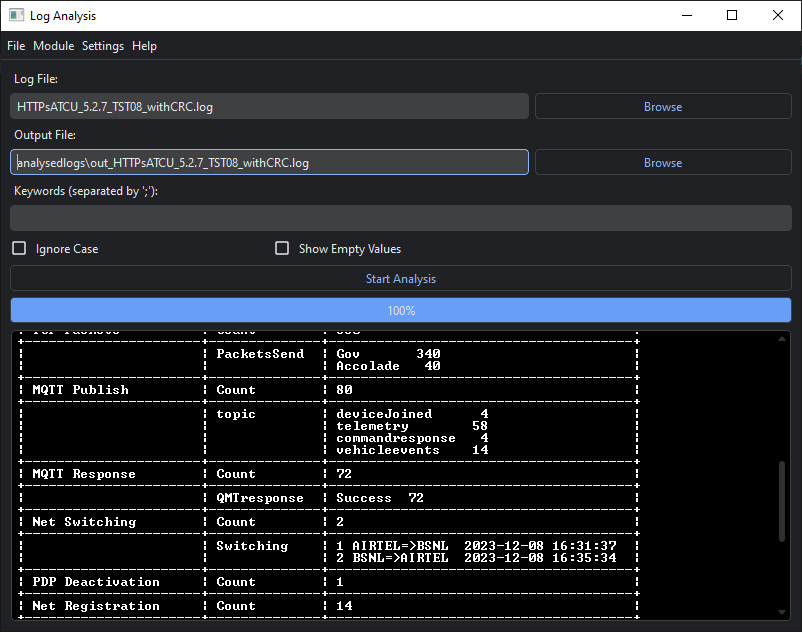

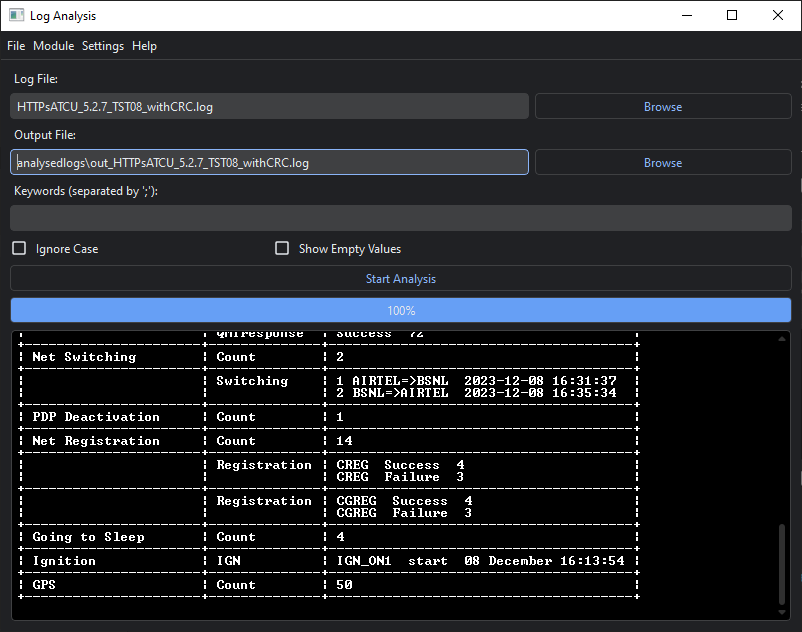

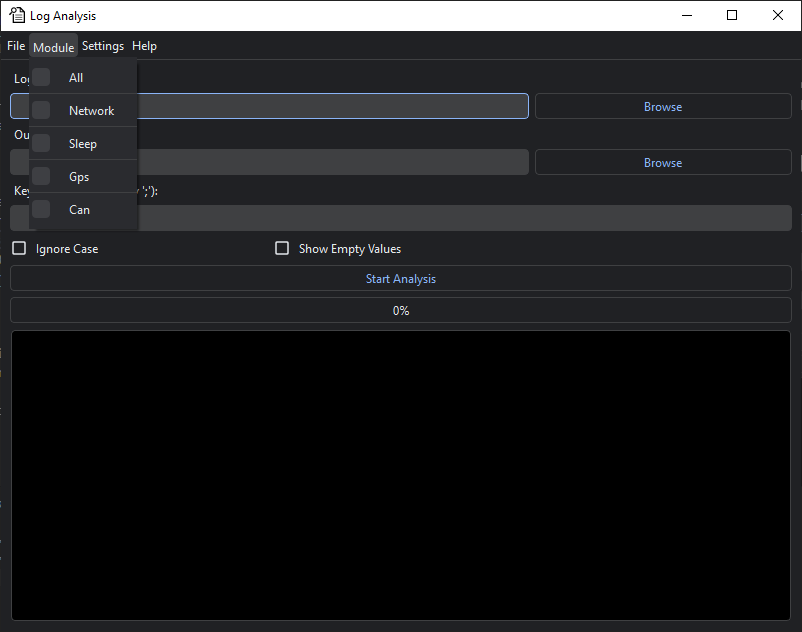

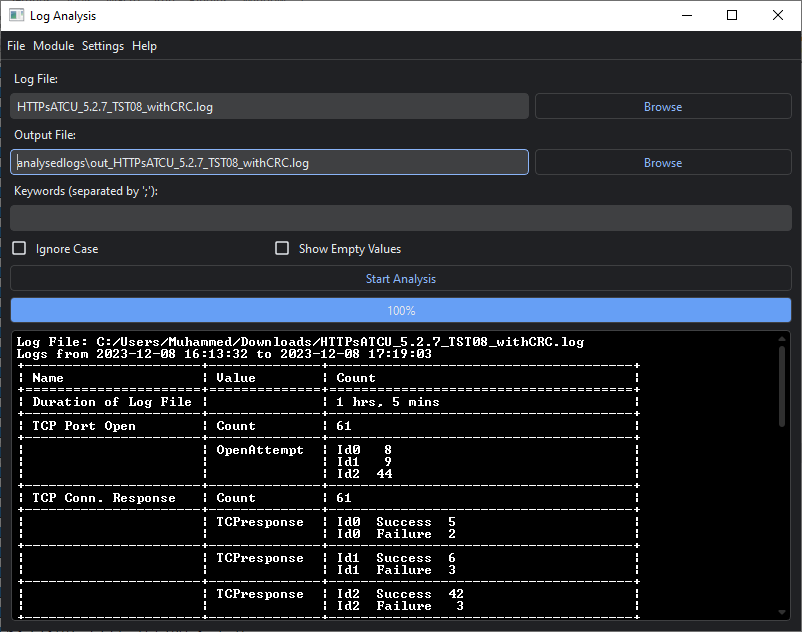

GUI

Added a GUI version for the logpy application using PySide6.

This can be started using:

logpy-gui

Supports light and dark themes. All the command line arguments are available as toggle buttons or fields. Shortcuts: Ctrl + O - Open log file Ctrl + L - Clear the output Ctrl + T - Toggle Theme

The GUI tool can also be distributed as a standalone application. This can be done using the PyInstaller and InstallForge. You can find more about the procedure in my Notes.md.

Contact

If you have any questions or need support, you can reach out to the developer.

Happy log analysis with LogPy! 🚀
